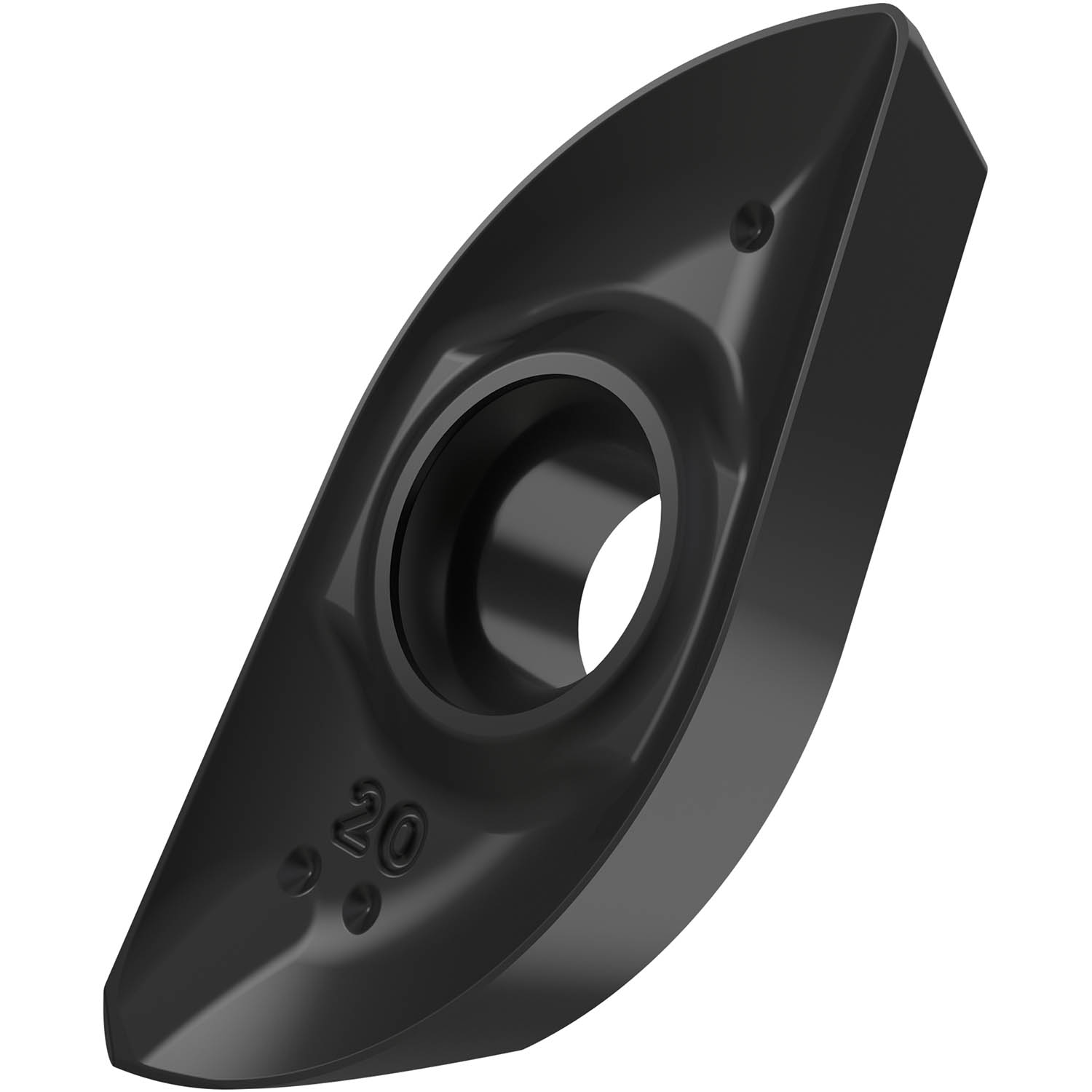

Indexable ball nose segment copy milling insert for a diameter of 16 mm for a maximum depth of cut of 15.0 mm, M geometry and M8345 PVD coated WC-Co carbide within ISO-grade ranges P30-P50 and M30-M40 for machining of steel and stainless-steel with copy end mills L2-SZP.
Product Specifications
| EDP Number | 6756121 |
| Maximum Depth of Cut (mm) | 15 mm |
| Max Depth of Cut (Inch) | 0.591" |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 2.9 mm |
| Fixing Hole Diameter (Inch) | 0.114" |
| Insert Width (mm) | 16 mm |
| Insert Width (Inch) | 0.63" |
| Insert Thickness (mm) | 3.18 mm |
| Insert Thickness (Inch) | 0.125" |
| Coating Process | PVD |
| Coating | M8345 |
| Surface Color | Purple - Black |
| Min Depth of Cut (mm) | 0.3 mm |
| Min Depth of Cut (Inch) | 0.012" |
