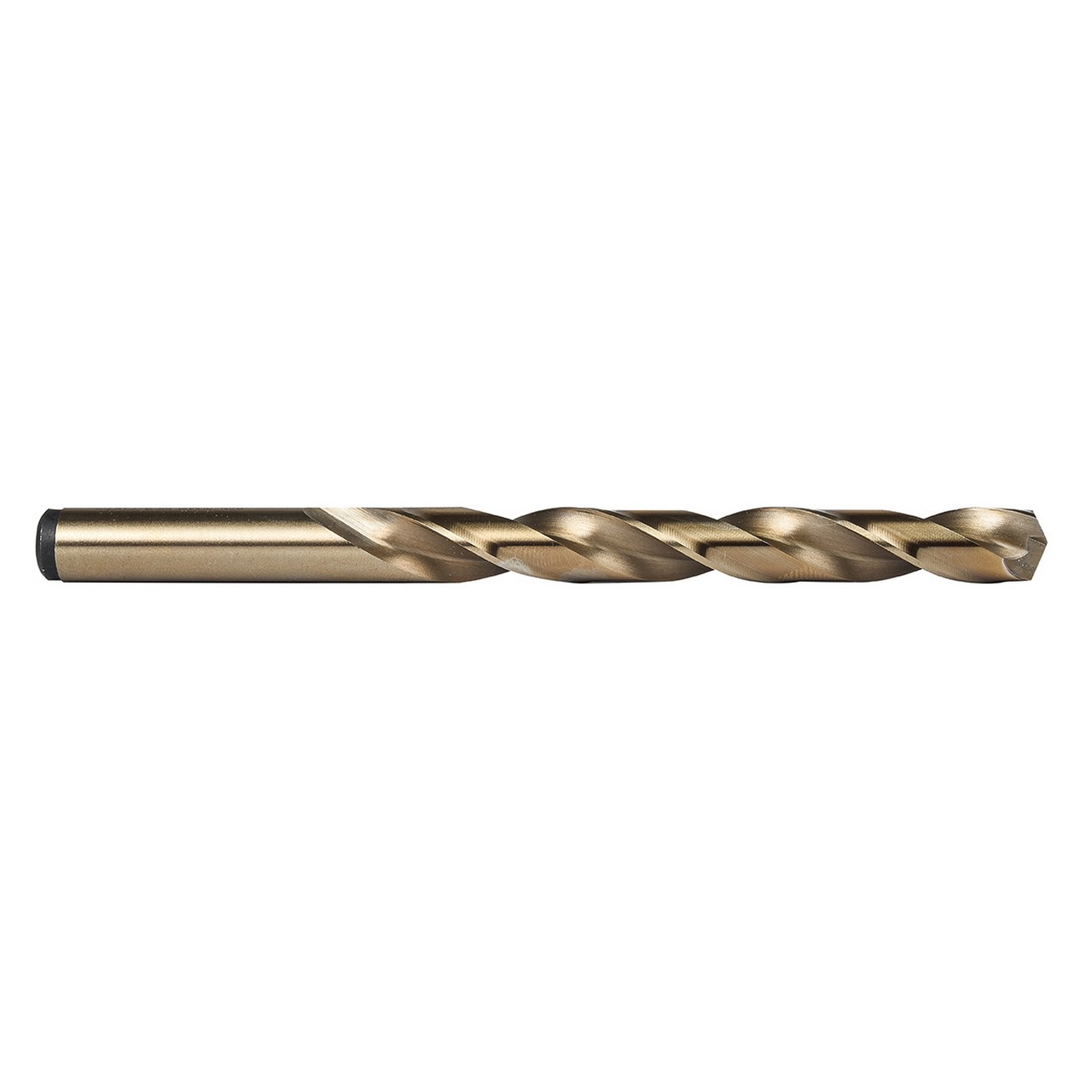

2ACO Jobber drill bits are manufactured from premium High Speed cobalt and are suitable for drilling hard materials including tool steel and have a heavy duty design, recommended for use in difficult materials and applications. The 135 degree split point is an aid to self-centering and reduces the push force needed, whilst the bronze oxide finish prevents workpiece material from sticking to the cutting edges of the tool so you get clean and accurate results. 2ACO Jobber drill bits are available in many sizes from 1 mm to 13 mm.
Product Specifications
| EDP Number | 16417 |
| Material Code | HSS-E |
| Basic Standard Group | DIN 338 |
| Usable Length | 4 |
| Point Angle | 135 |
| Cutting Diameter (mm) | 1.7 mm |
| Cutting Diameter (Inch) | 0.0669" |
| Overall Length (mm) | 43 mm |
| Overall Length (Inch) | 1.6929 |
| Length Chip Flute (mm) | 20 mm |
| Spiral Form | Standard Spiral |
| Hand Direction | Right |
| Drill Length | Jobber |
| Coating | Bronze |
| Surface Color | Bronze |
| Surface Treatment | Steam Tempered |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Precision Twist Drill
Drill Bit Size (Inch):
1/16"
Drill Bit Size (Decimal Inch):
0.0669"
Drill Bit Size (mm):
1.7mm
Drill Point Angle:
135°
Overall Length (Inch):
1-11/16"
Overall Length (Decimal Inch):
1.6929"
Overall Length (mm):
43mm
Cutting Direction:
Right
Material:
HSS-E
Finish/Coating:
Bronze
