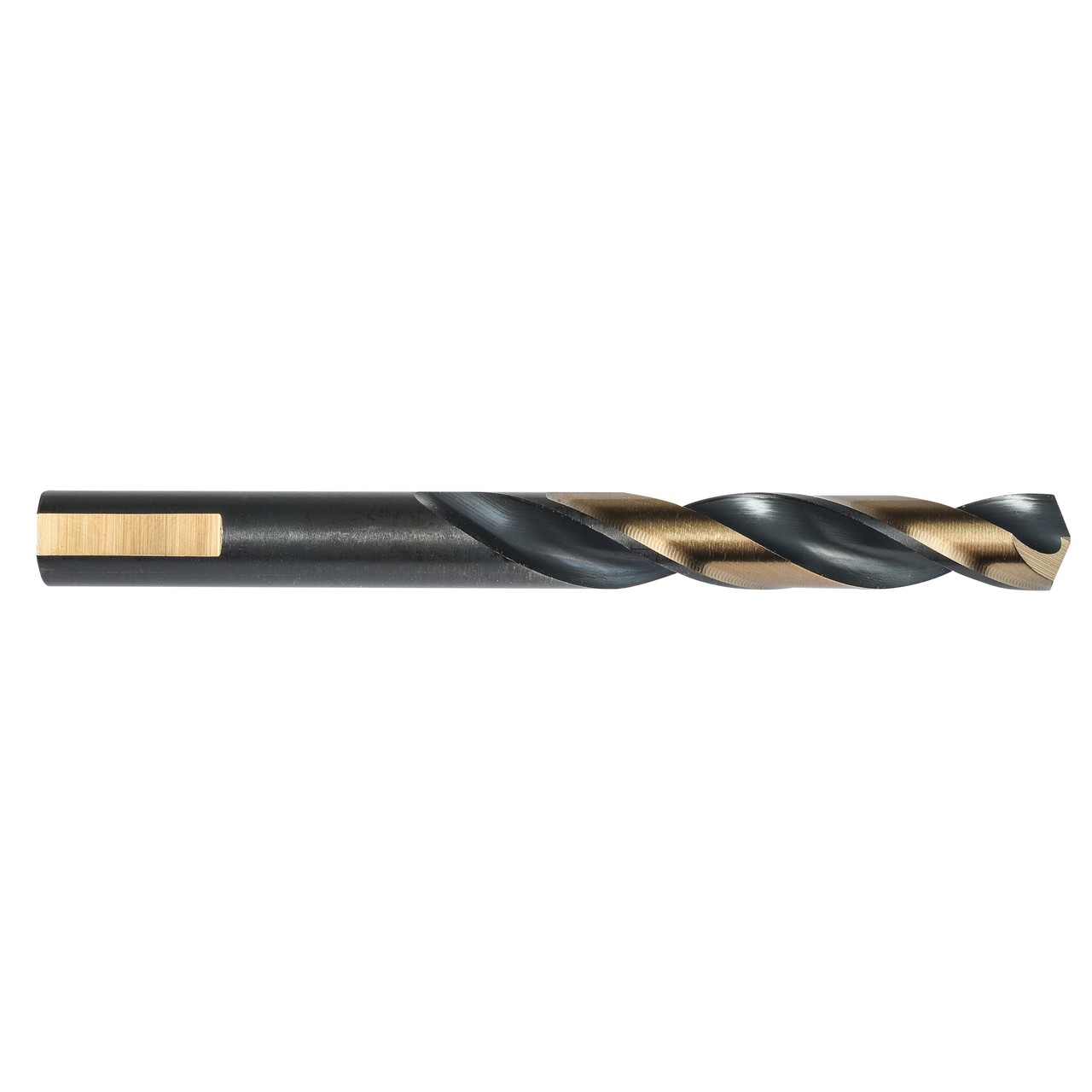

For a versatile product with a tri-flat shank, suitable for the many different machine and hand held applications of the maintenance and repair professional, 321MD heavy duty jobber drills have a 135 degree split point to help keep the drill centered on the hole and reduce the push force needed to drill into the workpiece. They are manufactured from High Speed Steel for drilling all types of steel, and have a dual steam oxide finish which prevents workpiece material from sticking to the cutting surfaces of the drill for cleaner, more accurate holes, and also helps with identification. 321MD heavy duty jobber drills are available in many fractional diameters from 1/16" up to 1/2".
Product Specifications
| EDP Number | 46480994 |
| Material Code | HSS |
| Basic Standard Group | ANSI |
| Point Angle | 135 |
| Cutting Diameter (mm) | 11.11 mm |
| Cutting Diameter (Inch) | 0.4375" |
| Cutting Diameter (Fractional Inch) | 7/16" |
| Overall Length (mm) | 114.3 mm |
| Overall Length (Inch) | 4.5 |
| Overall Length (Fractional Inch) | 4.1/2 |
| Length Chip Flute (Fractional Inch) | 2.15/16" |
| Hand Direction | Right |
| Drill Length | Mechanics |
| Coating | ST/Bronze |
| Surface Color | Blue & Bronze |
| Surface Treatment | Steam Tempered |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Precision Twist Drill
Drill Bit Size (Inch):
7/16"
Drill Bit Size (Decimal Inch):
0.4375"
Drill Bit Size (mm):
11.11mm
Drill Point Angle:
135°
Overall Length (Inch):
4-1/2"
Overall Length (Decimal Inch):
4.5000"
Overall Length (mm):
114.3mm
Cutting Direction:
Right
Material:
HSS
Finish/Coating:
ST/Bronze
