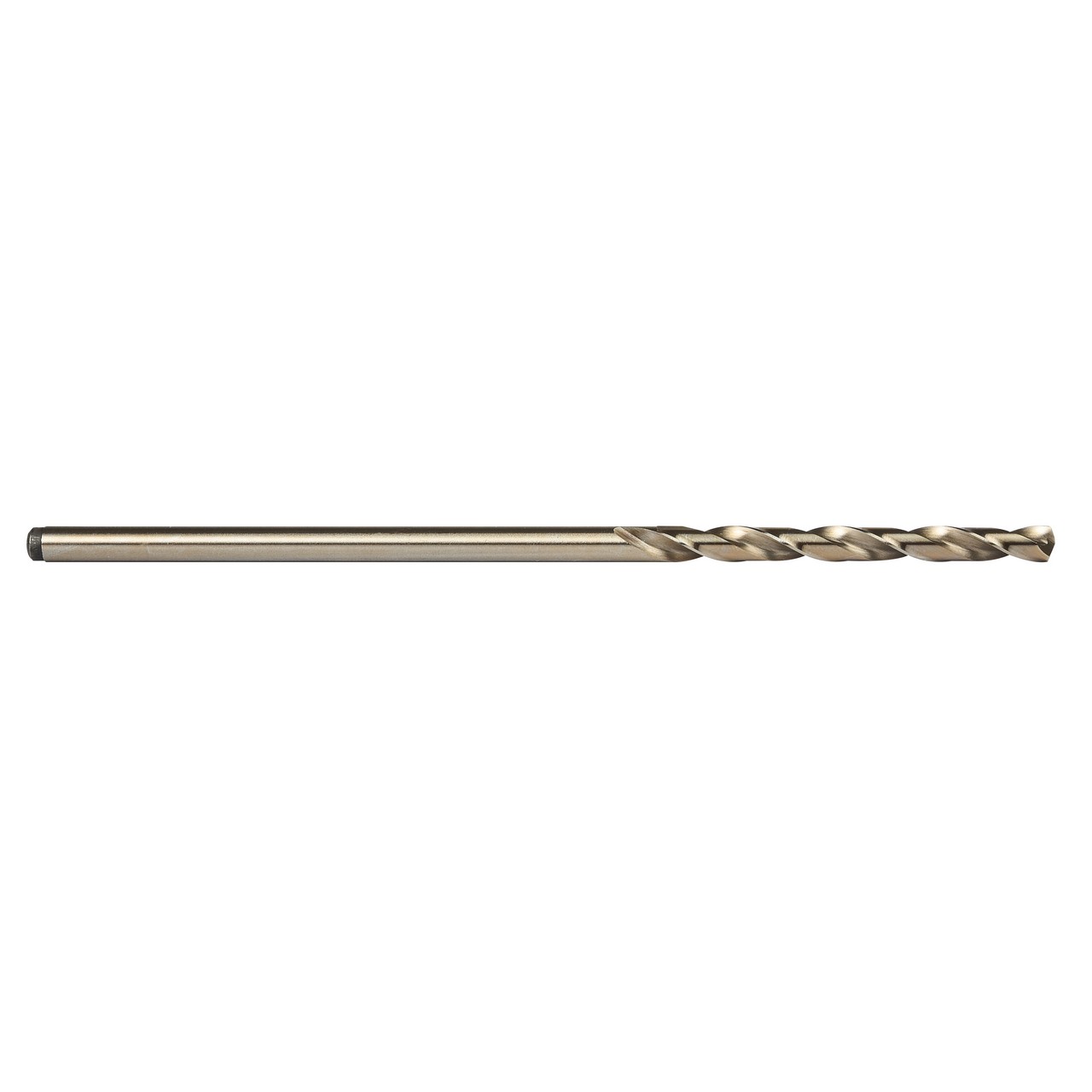

For a comprehensive set of Long Series wire gauge Aircraft extension drill bits to NAS907 Type J standard, the CO501-6 set is exactly what you need. With all wire gauge sizes from 52 to 1 (53 drills in all), the 501-6 drill bits in the set have a low thrust design and self-centering, 135 degree split points for easier penetration. Manufactured from premium High Speed cobalt, the drills can be used in many materials, including steel, aluminum and stainless steel and have a bronze oxide finish to prevent workpiece material from sticking to the cutting surfaces of the drills, ensuring clean and accurate holes. Designed for stable drilling in hard to reach areas, the drills have a long overall length (6"es on every drill), with short flutes.
Product Specifications
| EDP Number | 53740 |
| Material Code | HSS-E |
| Basic Standard Group | NAS907 |
| Usable Length | 4 |
| Point Angle | 135 |
| Cutting Diameter (mm) | 2.49 mm |
| Cutting Diameter (Inch) | 0.098" |
| Overall Length (mm) | 152.4 mm |
| Overall Length (Inch) | 6 |
| Overall Length (Fractional Inch) | 6" |
| Length Chip Flute (Fractional Inch) | 1.3/8" |
| Hand Direction | Right |
| Drill Length | Aircraft Extension |
| Coating | Bronze |
| Surface Color | Bronze |
| Surface Treatment | Steam Tempered |
| Cutting Diameter (Wire Gauge Size) | N40 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Precision Twist Drill
Drill Bit Size (Inch):
3/32"
Drill Bit Size (Decimal Inch):
0.0980"
Drill Bit Size (mm):
2.49mm
Drill Point Angle:
135°
Overall Length (Inch):
6"
Overall Length (Decimal Inch):
6.0000"
Overall Length (mm):
152.4mm
Material:
HSS-E
Finish/Coating:
Bronze
