Features:
- Collet Set includes tray
- Superior collet slot design
- Superior surface finish
- Improved clamping length on small diameters
Product Specifications
| Manufacturer Part Number | 1225.00002 |
| TIR (Decimal Inch) | 0.0002" |
| TIR (mm) | 0.005mm |
| Clamping Range (Decimal Inch) | 0.25" - 0.625" |
| Clamping Range (mm) | 6.35mm - 15.88mm |
| Collet Set Piece | 7 Piece |
| Length (Decimal Inch) | 4.0000" |
| Width (Decimal Inch) | 4.0000" |
| Height (Decimal Inch) | 3.0000" |
| Coolant Thru Capable | Yes |

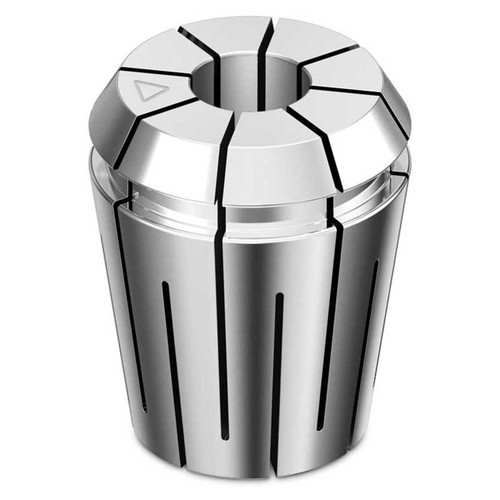

| Product Type | ER25 Collet Set |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Rego-Fix
Clamping Range (Inch):
1/4" - 5/8"""
Clamping Range (Decimal Inch):
0.2500" - 0.6250"""
Clamping Range (mm):
6.35mm - 15.88mm
TIR (Decimal Inch):
0.0002"
Collet Series:
ER25
Number of Piece:
7
interval quantity:
7
