Features:
- Accuracy guaranteed to ± 0.00004

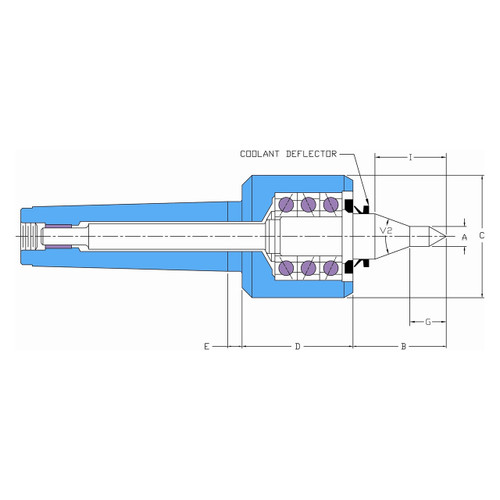

- Coolant Deflectors, no friction seal
- Point configuration allows for tool clearance
- Meets the rigid requirements of CNC turning
- Points through-hardened to 61-63 Rc
- Body heat-treated for additional strength
Product Specifications
| # MFG | 14104 |
| Taper | 4 Morse |
| Accuracy | ± 0.00004 |
| Point Length (Inch) | 2.625" |
| Max Workpiece Weight (lbs) | 1100 lbs. |
| Head Length (Inch) | 2.781" |
| Head Diameter (Inch) | 3.063" |
| Max RPM | 5000 |
| Point Diameter (Inch) | 0.500" |
| Gage Line to Back of Head (Inch) | 0.375" |
| Point Style | Long Point |
| Series | Sprint Live Centers |
