Features:
- Accuracy guaranteed to ± 0.0002
- May be used in conjunction with face drivers
- Large workpieces in CNC applications

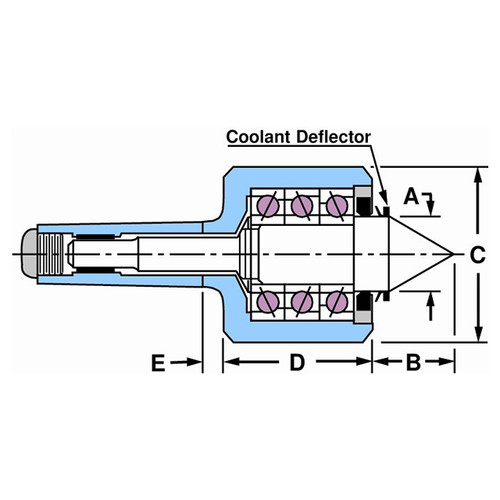

Product Specifications
| # MFG | 16106 |
| Taper | 6 Morse |
| Accuracy | ± 0.00005 |
| Point Length (Inch) | 2.781" |
| Max Workpiece Weight (lbs) | 2500 lbs. |
| Head Length (Inch) | 3.844" |
| Head Diameter (Inch) | 3.750" |
| Max RPM | 4000 |
| Point Diameter (Inch) | 0.625" |
| Gage Line to Back of Head (Inch) | 0.500" |
| Point Style | Tracer Point |
| Series | CNC Heavy Duty Live Centers |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Riten
Length (Inch):
1"
Length (Decimal Inch):
2.7810"
Length (mm):
70.64mm
Diameter (Inch):
5/8"
Diameter (Decimal Inch):
0.6250"
Diameter (mm):
15.88mm
interval quantity:
1
