Features:
- Accuracy guaranteed to ± 0.0002
- May be used in conjunction with face drivers
- Large workpieces in CNC applications

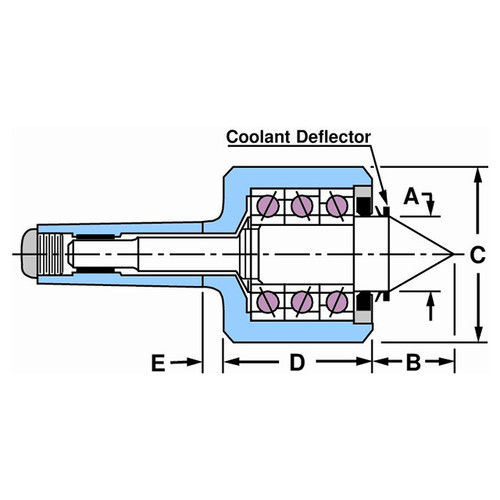

Product Specifications
| # MFG | 16194 |
| Taper | 4 Morse |
| Accuracy | ± 0.00005 |
| Point Length (Inch) | 3.281" |
| Max Workpiece Weight (lbs) | 3750 lbs. |
| Head Length (Inch) | 3.844" |
| Head Diameter (Inch) | 4.625" |
| Max RPM | 4000 |
| Point Diameter (Inch) | 0.938" |
| Gage Line to Back of Head (Inch) | 0.500" |
| Point Style | Tracer Point |
| Series | CNC Heavy Duty Live Centers |
