Features:
- Accuracy guaranteed to ± 0.0001
- Designed for heavy steel rolls, paper rolls, printing rolls, castings, forgings and other large parts

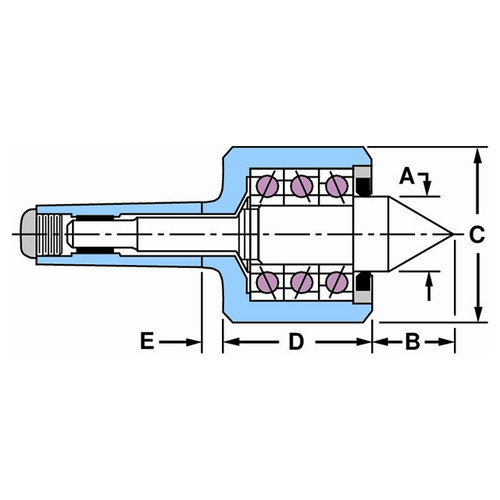

Product Specifications
| # MFG | 55103 |
| Taper | 3 Morse |
| Accuracy | ± 0.0001 |
| Point Length (Inch) | 1.500" |
| Max Workpiece Weight (lbs) | 3000 lbs. |
| Head Length (Inch) | 3.188" |
| Head Diameter (Inch) | 2.813" |
| Max RPM | 4000 |
| Point Diameter (Inch) | 1.250" |
| Gage Line to Back of Head (Inch) | 0.500" |
| Point Style | Standard Point |
| Series | Extra Heavy Duty Live Centers |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Riten
Length (Inch):
1"
Length (Decimal Inch):
1.5000"
Length (mm):
38.10mm
Diameter (Inch):
1-1/4"
Diameter (Decimal Inch):
1.2500"
Diameter (mm):
31.75mm
interval quantity:
1
