Imperial Carbide Centers cover the requirements for a wide range of workpiece center holes. They reduce costs by eliminating the need for special dead centers. Knockout ends are hardened on carbide tipped dead centers.

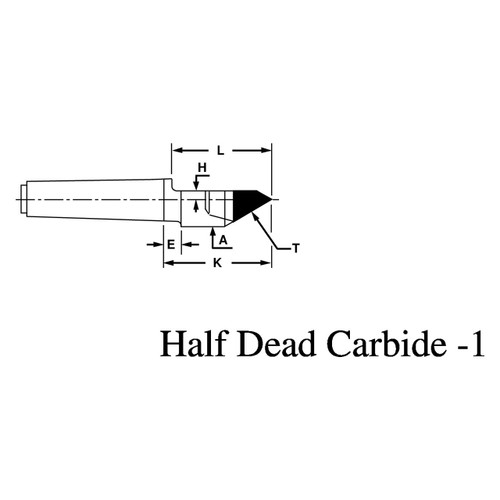

<Product Specifications
| # MFG | 69614 |
| Taper | 14 Jarno |
| Accuracy | ± 0.00005 |
| Gage Line to Point (Inch) | 3.500" |
| Point Diameter (Inch) | 1.750" |
| Center Style | Half Carbide Center |
| Carbide Tip Diameter (Inch) | 1.250" |
| Height Above Center Line (Inch) | 0.250" |
| Point Style | Large Carbide Point |
| Series | Imperial Dead Centers |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Riten
Diameter (Inch):
1-3/4"
Diameter (Decimal Inch):
1.7500"
Diameter (mm):
44.45mm
