Features:
- Carbide Tipped Half Center

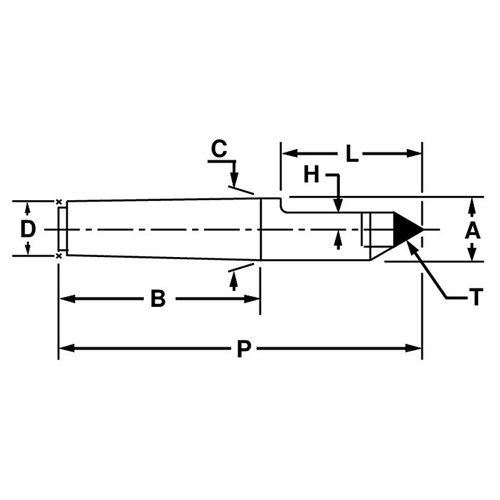

Product Specifications
| # MFG | 71074 |
| Taper | 7 Morse |
| Accuracy | ± 0.00005 |
| Overall Length (Inch) | 15.000" |
| Point Diameter (Inch) | 3.270" |
| Center Style | Half Carbide Center |
| Taper Length (Inch) | 10.000" |
| D (Inch) | 2.750" |
| Carbide Tip Diameter (Inch) | 1.000" |
| Height Above Center Line (Inch) | 0.750" |
| Length of Cut Out (Inch) | 4.000" |
| Series | Standard Length Dead Centers |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Riten
Length (Inch):
10"
Length (Decimal Inch):
10.000"
Length (mm):
254.00mm
Overall Length (Inch):
15"
Overall Length (Decimal Inch):
15.0000"
Overall Length (mm):
381.00mm
Diameter (Inch):
3-17/64"
Diameter (Decimal Inch):
3.2700"
Diameter (mm):
83.06mm
