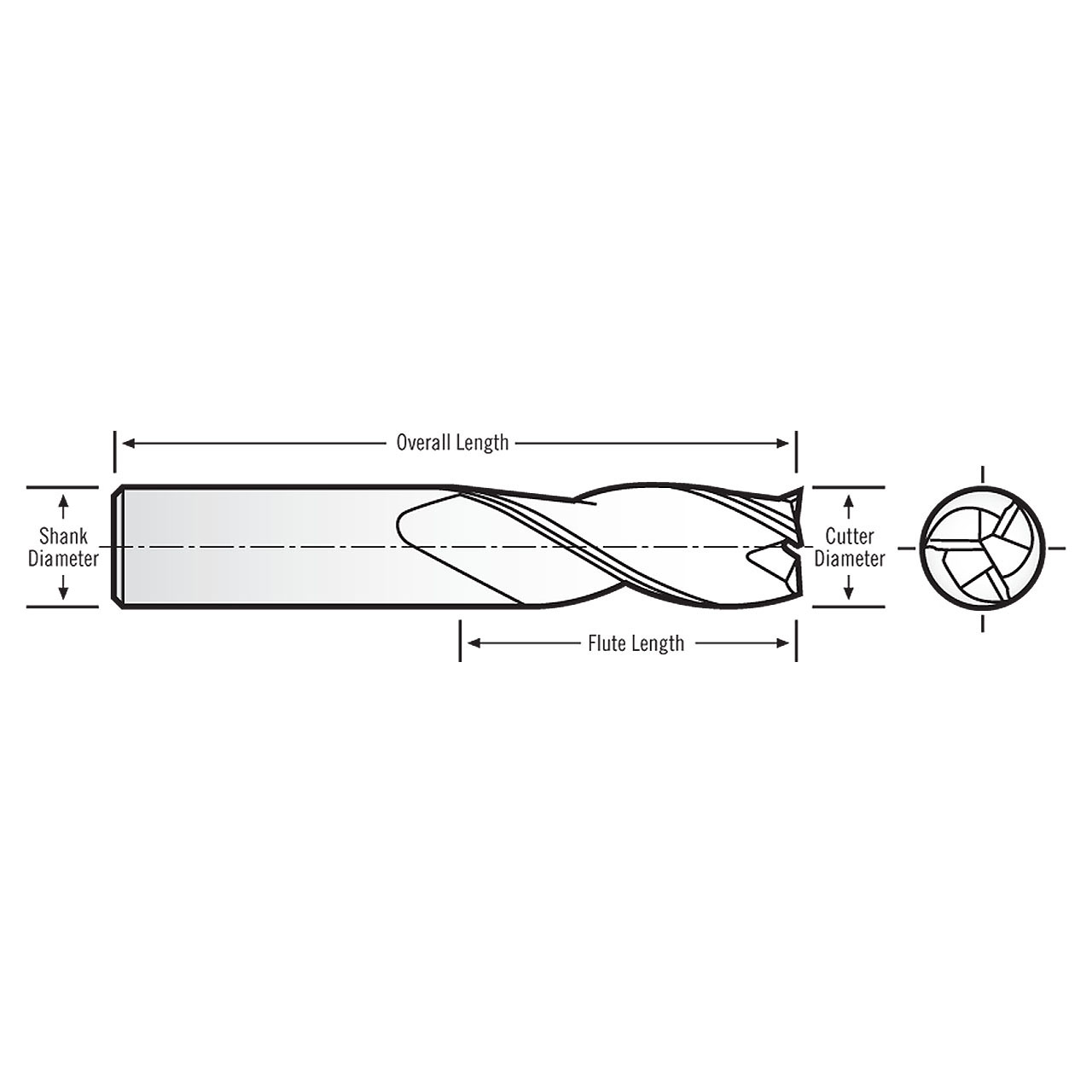

RobbJack ST-343-06-T | 0.188" Diameter x 0.188" Shank x 2.000" OAL 3 Flute TiN Coated Square End Mill

$49.00
Brand:
RobbJack
Mill Diameter (Inch):
3/16"
Mill Diameter (Decimal Inch):
0.1880"
Mill Diameter (mm):
4.78mm
Number of Flutes:
3
Finish/Coating:
TiN
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1880"
Shank Diameter (mm):
4.78mm
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2.0000"
Overall Length (mm):
50.80mm
Helix Angle:
40 Degree
Cutting Direction:
Right Hand
SKU:
25207427
Weight:
0.23 LBS
Shipping:
Calculated at Checkout
RobbJack ST-343-06-T | 0.188" Diameter x 0.188" Shank x 2.000" OAL 3 Flute TiN Coated Square End Mill

Product Specifications
Manufacturer Part NumberST-343-06-T
Cutting Diameter (Decimal Inch)0.188"
Shank Diameter (Decimal Inch)0.188"
Maximum Cutting of Diameter (Decimal Inch)0.188"
Overall Length (Decimal Inch)2.000"
Flute Length (Decimal Inch)0.625"
Corner Chamfer (Decimal Inch)0.003"
Number of Flutes3
Helix Angle (Degree)40 Degree
Chamfer Angle (Degree)45 Degree
Cutting DirectionRight Hand
Helix DirectionRight Hand
SeriesST-343
CoatingTiN
Product TypeSquare End Mill
