Roemheld CLR-3420-468 | 1845 Size x 45 Degree Swing Limiter

Roemheld Swing Limiters

Give you the freedom to choose what swing angle you need. The swing clamps arrive to you with the standard 90° swing angle but in a matter of minutes you can add one of these swing limiters to achieve the swing angle you need.

Technical Information

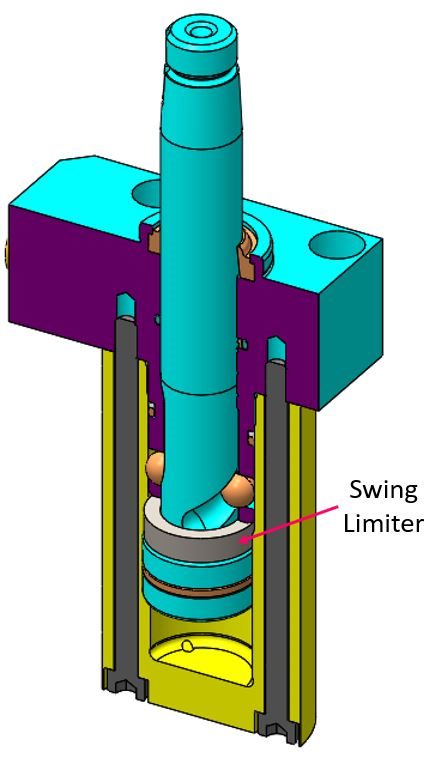

Instructions: 1. Remove the 4 socket head cap screws from the bottom of the housing and remove lower part of housing. 2. Remove the 2 large guide balls (a magnet maybe helpful here). Be careful not to lose them! 3. Remove piston and slide Swing Limiter over the piston rod. 4. Reassemble in reverse order.

Material

Parts Specification
