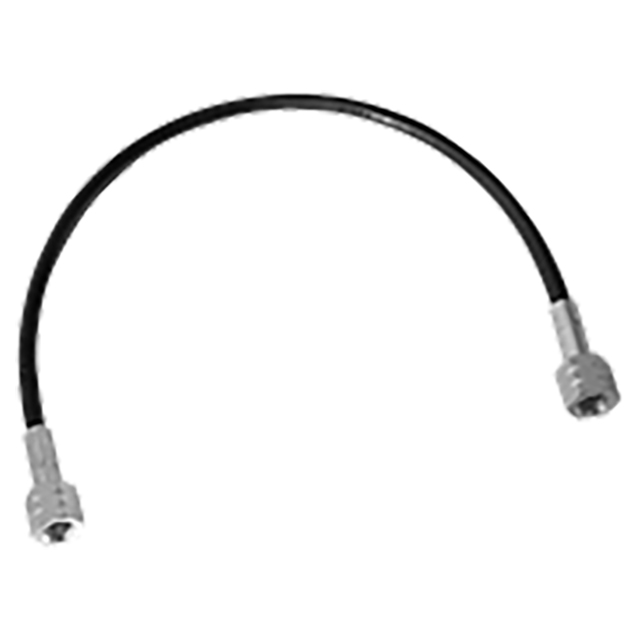

Roemheld CLR-HH-156-016-5J5J | 16" ID x 5/32" OAL Fixture Hose

$60.38
Brand:
Roemheld
Overall Length (Inch):
5/32"
Overall Length (Decimal Inch):
0.1563"
Overall Length (mm):
3.97mm
SKU:
50022238
UPC:
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

Fixture Hoses-37-Degree Flare

7250 psi max

This exclusive small-diameter high-pressure hydraulic hose is especially designed for workholding applications. Can be used for flexible connections, or for rigid connections as an alternative to tubing. Easy to fit into tight spots, with a 1-5/8" minimum bend radius. 5/32" inside diameter, 0.090" wall thickness. Operating temperature range -40 to 212°F. 25,520 psi minimum burst pressure provides a 3.5 to 1 safety factor at 7250 psi. It has swivel-nut ends for 37°-flare fittings. Choice of many standard lengths, from 6 to 24" long.

Design Considerations & Safety Precautions

Do not use any type of hose other than the Heavy-Duty Hose or Fixture Hose with the power workholding products.

Parts Specification

Overall Length (Inch)ID (Inch)Minimum Bend Radius
16"5/32"1.62

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
