- Royal threaded dead centers are designed for use in CNC turning centers with live tailstocks
- These dead centers are also widely used in precision grinding applications
- Carbide-Tipped CNC Point
- Full Diameter Extended Point
- Longer than normal gage length on all models provides outstanding clearance
- Extraction nut and wrench flats enable easy removal from tailstock/spindle

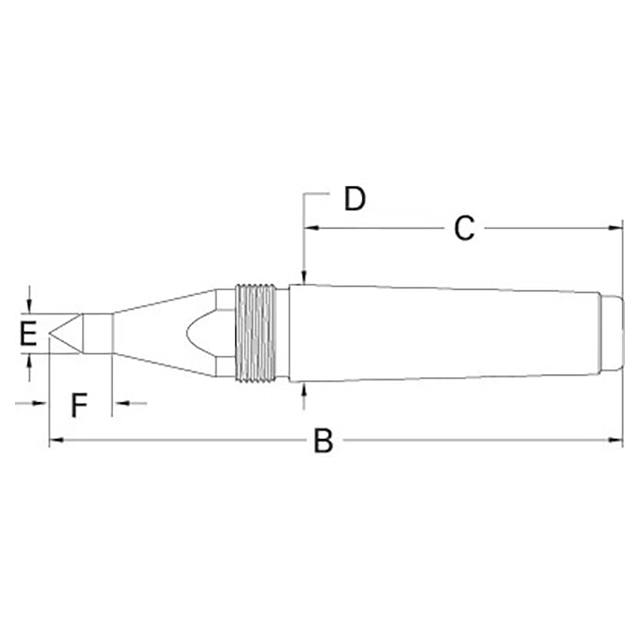

Product Specifications
| Center Dimension A (Center Taper) | 3 MT |
| Center Dimension B (Inch) | 5.94 |
| Center Dimension C (Inch) | 3.19 |
| Center Dimension D (Inch) | 0.938 |
| Center Dimension E (Inch) | 0.380 |
| Center Dimension F (Inch) | 0.63 |
| Drill Chuck Thread | 1 - 14 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Royal Products
