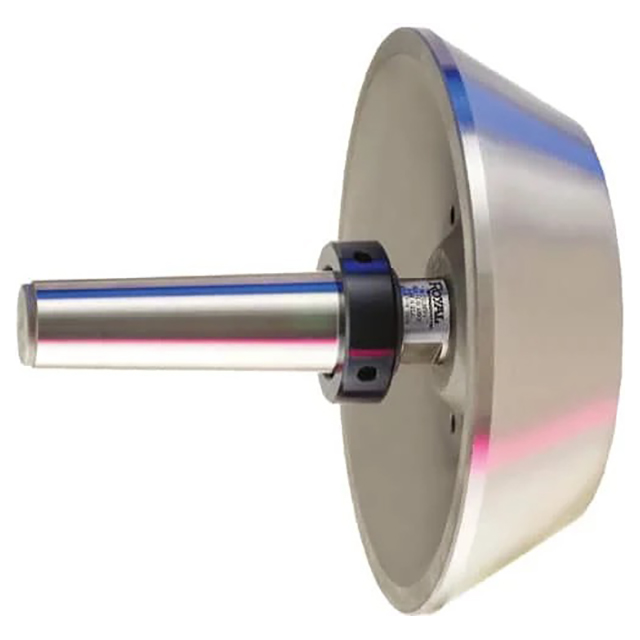

- Designed for turning large tubes and pipes on lathes with live tailstocks
- Can also be used in large-diameter grinding applications
- Interchangeable heads offer maximum versatility
- +/–0.0002" TIR guaranteed
- Extraction nut (included) allows for easy removal from tailstock
Product Specifications
| Center Dimension A (Center Taper) | 4 MT |
| Compatible Lathe Model | Standard |
| Center Dimension C (Inch) | 4.06 |
| Center Dimension D (Inch) | 1.231 |
| J With Head A | 4.63 |
| J With Head B-E | 3.91 |
| Drill Chuck Thread | M42 x 1.5 |
