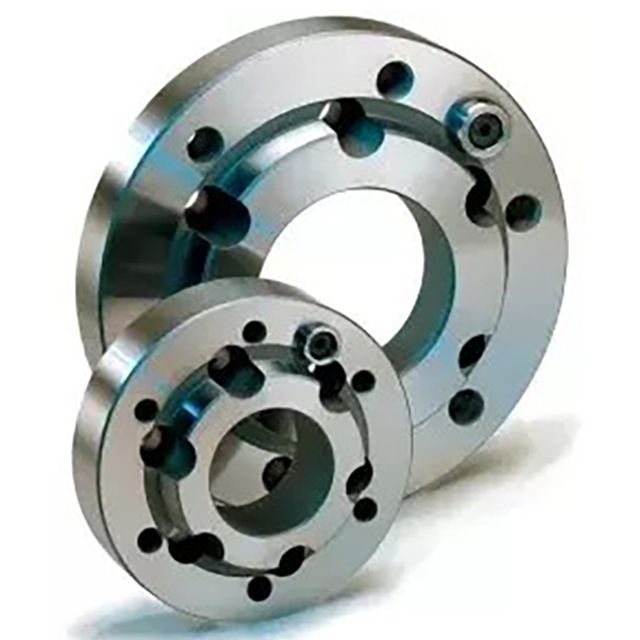

Royal 44006 | 5.31" Diameter x 110mm Spindle x A2-5 Chuck Hardened and Ground Adapter Chuck Plates

$1,615.00 $1,453.50
(You save $161.50)
Brand:
Royal Products
Diameter (Inch):
5-5/16"
Diameter (Decimal Inch):
5.3100"
Diameter (mm):
134.87mm
interval quantity:
1
SKU:
55046405
UPC:
Weight:
5.31 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

  • Adapter plates offer the flexibility to mount collet chucks and 3-jaw chucks to a wider range of spindles

    • Mount a larger chuck on a smaller spindle for increased capacity
    • Mount a smaller chuck on a larger spindle for increased tool clearance and higher speeds

  • All Royal adapter plates are hardened to RC 61-63

  • High accuracy – 0.0002? TIR guaranteed

  • Metric screws included for mounting plate to spindle

  • Drive button included on all plates

    •
    Product Specifications
    Plate Diameter (Inch) 5.31"
    Spindle Mount 110mm
    Chuck Mount A2-5
    Plate Thickness 0.75
    Thru-Hole Diameter 2.00
    Spindle Mounting Bolts M-10
    Chuck Mount Threats M-10
