Royal Products 70780 | Albrecht Jaw Guide for C15-J0 Classic Keyless Drill Chuck

$199.00 $179.10
(You save $19.90)
interval quantity:
1
SKU:
55048344
UPC:
Weight:
0.02 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Related Products

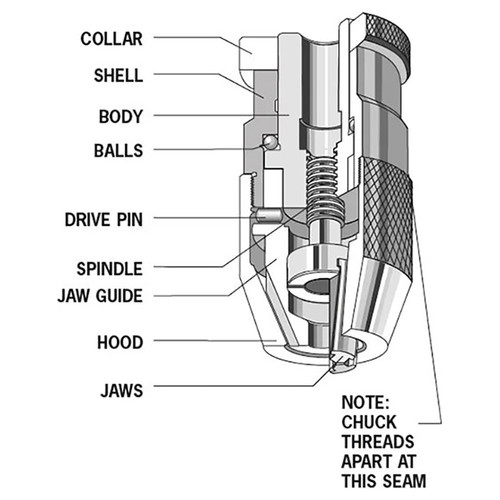

  • Remove collar from chuck
  • There is an invisible seam between the hood and shell. Hold chuck by the shell in a vise with soft jaws and loosen hood with a strap wrench – RH thread
  • Once the hood has been loosened, unscrew by hand to prevent distortion
  • Slide jaws out of jaw guide and remove guide
  • Remove body and spindle assembly to expose balls
  • Clean all parts with a mild solvent
  • Replace worn or damaged parts
  • Reverse steps for assembly

Product Specifications
Chuck ModelC15-J0
