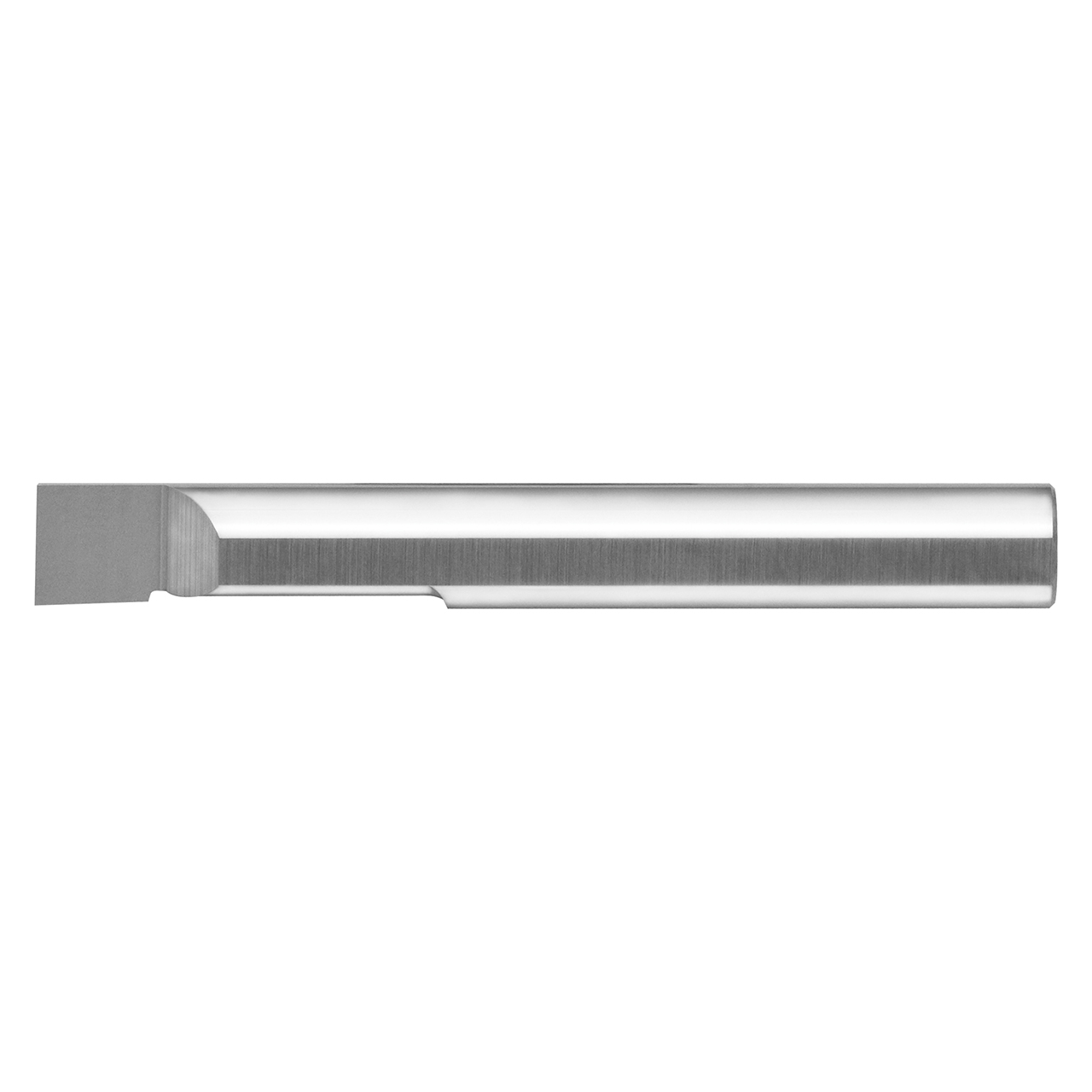

Scientific Cutting Tools LHB230400A | 0.230" Minimum Bore Diameter x 0.400" Maximum Bore Depth x 0.312" Shank x 2.500" OAL ALTIN Coated Solid Carbide Boring Bar

$55.76
Brand:
Scientific Cutting Tools
Minimum Bore Diameter (Inch):
15/64"
Minimum Bore Diameter (Decimal Inch):
0.2300"
Minimum Bore Diameter (mm):
5.84mm
Maximum Bore Depth (Inch):
13/32"
Maximum Bore Depth (Decimal Inch):
0.4000"
Maximum Bore Depth (mm):
10.16mm
Shank Diameter (Inch):
5/16"
Shank Diameter (Decimal Inch):
0.3120"
Shank Diameter (mm):
7.92mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Material:
Solid Carbide
Finish/Coating:
AlTiN
SKU:
10240506
Weight:
0.13 LBS
Shipping:
Calculated at Checkout
Scientific Cutting Tools LHB230400A | 0.230" Minimum Bore Diameter x 0.400" Maximum Bore Depth x 0.312" Shank x 2.500" OAL ALTIN Coated Solid Carbide Boring Bar

Features:

  • AlTiN+ coating extends tool life
  • Polished flute face for optimum performance
  • Precision ground shank flat guarantees tool orientation

Product Specifications
Manufacturer Part NumberLHB230400A
Shank Diameter (Decimal Inch)0.312"
Overall Length (Decimal Inch)2.500"
Minimum Bore Diameter (Decimal Inch)0.230"
Maximum Depth (Decimal Inch)0.400"
CoatingAlTiN
MaterialSolid Carbide
Product TypeBoring Bar

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Scientific Cutting Tools
Minimum Bore Diameter (Inch):
15/64"
Minimum Bore Diameter (Decimal Inch):
0.2300"
Minimum Bore Diameter (mm):
5.84mm
Maximum Bore Depth (Inch):
13/32"
Maximum Bore Depth (Decimal Inch):
0.4000"
Maximum Bore Depth (mm):
10.16mm
Shank Diameter (Inch):
5/16"
Shank Diameter (Decimal Inch):
0.3120"
Shank Diameter (mm):
7.92mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Material:
Solid Carbide
Finish/Coating:
AlTiN
