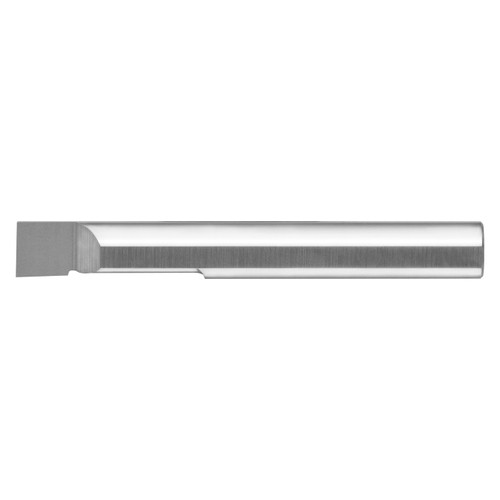

Scientific Cutting Tools PB290750A | 0.290" Minimum Bore Diameter x 0.750" Maximum Bore Depth x 0.312" Shank x 2.500" OAL ALTIN Coated Solid Carbide Profile Boring Bar

$64.63
Brand:
Scientific Cutting Tools
Minimum Bore Diameter (Inch):
19/64"
Minimum Bore Diameter (Decimal Inch):
0.2900"
Minimum Bore Diameter (mm):
7.37mm
Maximum Bore Depth (Inch):
3/4"
Maximum Bore Depth (Decimal Inch):
0.7500"
Maximum Bore Depth (mm):
19.05mm
Shank Diameter (Inch):
5/16"
Shank Diameter (Decimal Inch):
0.3120"
Shank Diameter (mm):
7.92mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Material:
Solid Carbide
Finish/Coating:
AlTiN
SKU:
10241085
Weight:
0.13 LBS
Shipping:
Calculated at Checkout
Scientific Cutting Tools PB290750A | 0.290" Minimum Bore Diameter x 0.750" Maximum Bore Depth x 0.312" Shank x 2.500" OAL ALTIN Coated Solid Carbide Profile Boring Bar

Features:

  • Machines complex internal shapes with ease
  • AlTiN+ coating allows higher Surface Feet per Minute
  • Elliptically ground neck provides maximum strength
  • Made with premium submicron grade carbide

Product Specifications
Manufacturer Part NumberPB290750A
Minimum Bore Diameter (Decimal Inch)0.290"
Maximum Depth (Decimal Inch)0.750"
Radius (Decimal Inch)0.015"
CoatingAlTiN
MaterialSolid Carbide
Product TypeProfile Boring Bar
