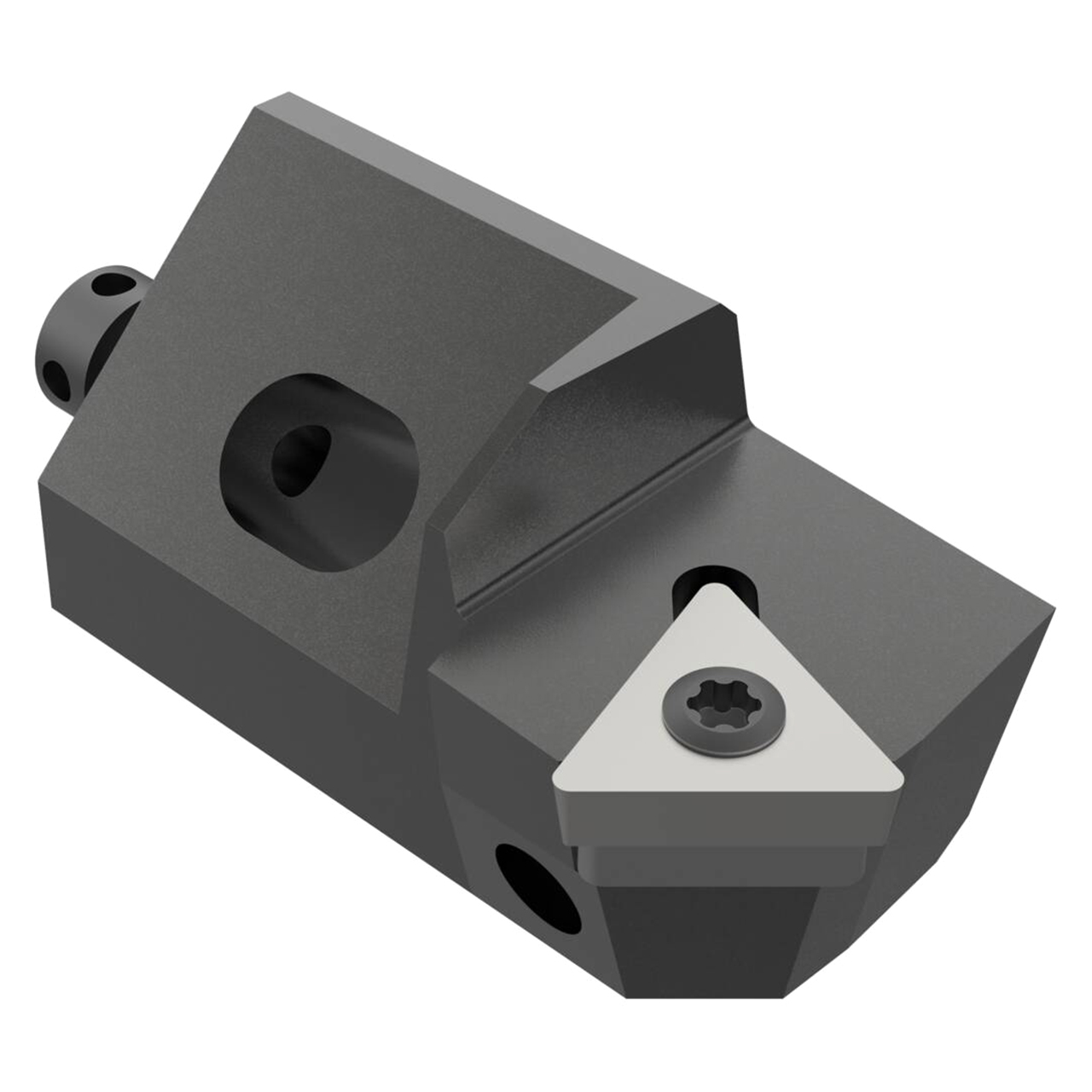

Product Specifications
| Manufacturer Part Number | 00009193 |
| Minimum Cutting Diameter Internal (Decimal Inch) | 2.362" |
| Minimum Cutting Diameter Internal (mm) | 60.00mm |
| Functional Length (Decimal Inch) | 2.087" |
| Functional Length (mm) | 53.00mm |
| Head Length (Decimal Inch) | 0.630" |
| Head Length (mm) | 16.00mm |
| Shank Width (Decimal Inch) | 0.787" |
| Shank Width (mm) | 20.00mm |
| Maximum Radial Cutting Depth (Decimal Inch) | 0.062" |
| Maximum Radial Cutting Depth (mm) | 1.57mm |
| Height of Tool Holder Shank (Decimal Inch) | 0.984" |
| Height of Tool Holder Shank (mm) | 25.00mm |
| Functional Height (Decimal Inch) | 0.630" |
| Functional Height (mm) | 16.00mm |
| Mounting Hole Distance (Decimal Inch) | 0.984" |
| Mounting Hole Distance (mm) | 25.00mm |
| Functional Width (Decimal Inch) | 0.983" |
| Functional Width (mm) | 24.96mm |
| Rake Radial Angle (Degree) | -6 Degree |
| Rake Radial Angle (Degree) | -6 Degree |
| Rake Orthogonal Angle (Degree) | -6 Degree |
| Axial Rake Angle (Degree) | -6 Degree |
| Cutting Direction | Left Hand |
| Insert Clamping System | S |
| Tool Cutting Edge Angle (Degree) | 45 Degree |
| Tool Cutting Edge Angle Code | S |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 165 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 45 Degree |
| Insert Shape Code | T |
| Shank Type | Cartridges |
| Product Type | Indexable Turning Cartridge |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov

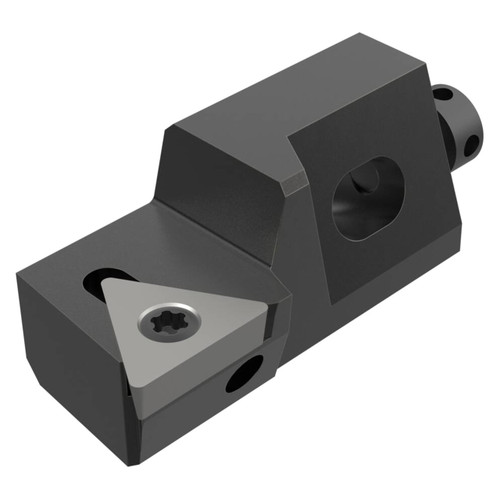

Related Products
