Product Specifications
| Manufacturer Part Number | 00012922 |
| Body Diameter (Decimal Inch) | 0.787" |
| Body Diameter (mm) | 20.00mm |
| Minimum Cutting Diameter Internal (Decimal Inch) | 0.984" |
| Minimum Cutting Diameter Internal (mm) | 25.00mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 1.575" |
| Contact Surface Diameter Machine Side (mm) | 40.00mm |
| Functional Length (Decimal Inch) | 3.150" |
| Functional Length (mm) | 80.00mm |
| Head Length (Decimal Inch) | 2.244" |
| Head Length (mm) | 57.00mm |
| Usable Length (Decimal Inch) | 2.244" |
| Usable Length (mm) | 57.00mm |
| Functional Width (Decimal Inch) | 0.512" |
| Functional Width (mm) | 13.00mm |
| Coolant Supply Property | 1 |
| Rake Orthogonal Angle (Degree) | -5 Degree |
| Cutting Direction | Left Hand |
| Insert Clamping System | W |
| Tool Cutting Edge Angle (Degree) | 95 Degree |
| Tool Cutting Edge Angle Code | L |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 95 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 95 Degree |
| Inclination Angle (Degree) | -11 Degree |
| Insert Shape Code | W |
| Shank Type | Seco-Capto |
| Product Type | Modular Turning Head |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov

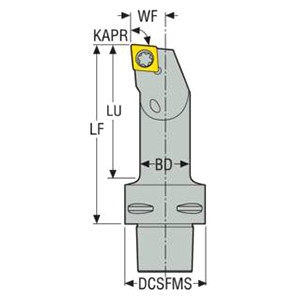

Related Products
