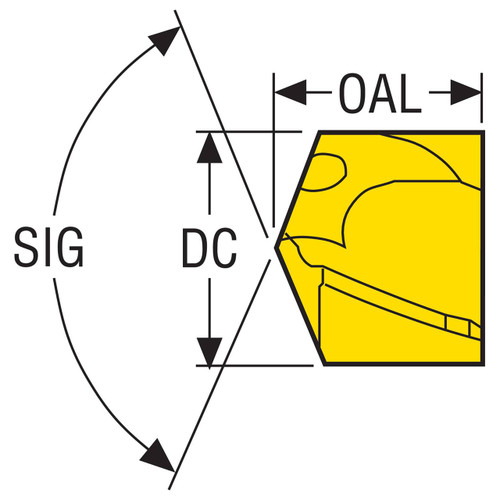

Product Specifications
| Manufacturer Part Number | 00035203 |
| Cutting Diameter (Decimal Inch) | 0.781" |
| Cutting Diameter (mm) | 19.84mm |
| Overall Length (Decimal Inch) | 0.598" |
| Overall Length (mm) | 15.20mm |
| Cutting Edge Count | 1 |
| Cutting Geometry Type | P |
| Coolant Entry Style Code | 4 |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 4 |
| Tool Cutting Edge Angle (Degree) | 70 Degree |
| Corner Chamfer Angle (Degree) | 35 Degree |
| Point Angle (Degree) | 140 Degree |
| Material | Carbide |
| Product Type | Replaceable Drill Tip |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Related Products
Brand:
Seco Tools
Diameter (Inch):
25/32"
Diameter (Decimal Inch):
0.7810"
Diameter (mm):
19.84mm
Material:
Carbide
interval quantity:
2
