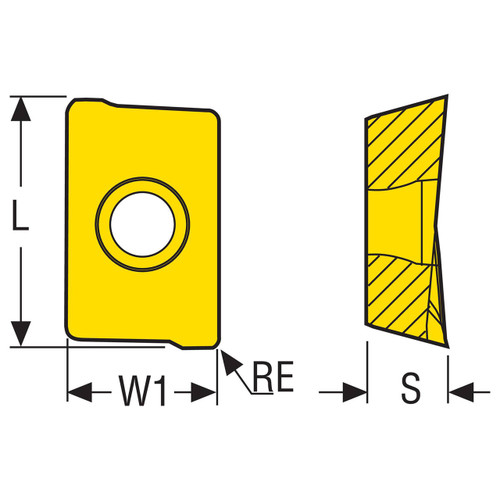

Seco Tools 00078104 | APMT1003 Size x 0.020" Radius x 0.138" Thickness 2 Cutting Edge Carbide Milling Insert

$25.50 $18.87
(You save $6.63)
Brand:
Seco Tools
Material:
Carbide
Thickness (Inch):
4/29"
Thickness (Decimal Inch):
0.1380"
Thickness (mm):
3.50mm
interval quantity:
10
SKU:
23275300
UPC:
Weight:
1.23 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout
Seco Tools 00078104 | APMT1003 Size x 0.020" Radius x 0.138" Thickness 2 Cutting Edge Carbide Milling Insert

Product Specifications
Manufacturer Part Number00078104
Fixing Hole Diameter (Decimal Inch)0.113"
Fixing Hole Diameter (mm)2.88mm
Wiper Edge Length (Decimal Inch)0.032"
Wiper Edge Length (mm)0.80mm
Cutting Edge Effective Length (Decimal Inch)0.400"
Cutting Edge Effective Length (mm)10.15mm
Corner Radius (Decimal Inch)0.020"
Corner Radius (mm)0.50mm
Insert Thickness (Decimal Inch)0.138"
Insert Thickness (mm)3.50mm
Clearance Angle Major (Degree)11 Degree
Cutting Edge Count2
Cutting Geometry TypeME
Cutting Geometry Type TechnicalME08
Pocket Seat Code of The CutterAP.T1003
Insert Size And ShapeAPMT1003
Insert Included Angle (Degree)88 Degree
Insert Rake Angle (Degree)25 Degree
Insert HandRight Hand
MaterialCarbide
Product TypeMilling Insert
