Product Specifications
| Manufacturer Part Number | 02422230 |
| Cutting Diameter (mm) | 32.00mm |
| Connection Bore Diameter (mm) | 16.00mm |
| Maximum Cutting Diameter (mm) | 42.00mm |
| Contact Surface Diameter Machine Side (mm) | 35.00mm |
| Functional Length (mm) | 40.00mm |
| Keyway Width (mm) | 8.40mm |
| Maximum Depth of Cut (mm) | 4.50mm |
| Depth of Key Way (mm) | 5.60mm |
| Tool Cutting Edge Angle (Degree) | 45 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 45 Degree |
| Rake Radial Angle (Degree) | -5 Degree |
| Rake Orthogonal Angle (Degree) | 10 Degree |
| Cutting Direction | Right Hand |
| Maximum Rotational Speed (rpm) | 19800 rpm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Pocket Seat Code of The Cutter | SE.X09T3 |
| Coolant Exit Style Code | 2 |
| Cutting Item Material Type | Steel |
| Shank Type | Arbor |
| Insert Shape Code | S |

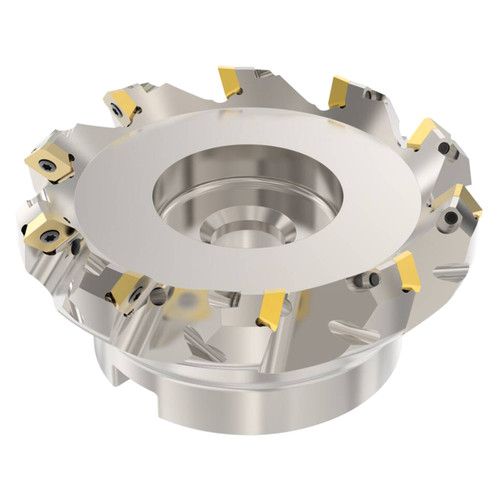

| Product Type | Indexable Chamfer & Angle Face Mill |
