Product Specifications
| Manufacturer Part Number | 02427479 |
| Minimum Cutting Diameter (mm) | 18.00mm |
| Connection Diameter Machine Side (mm) | 20.00mm |
| Maximum Cutting Diameter (mm) | 18.99mm |
| Flange Diameter (mm) | 25.00mm |
| Shank Diameter (mm) | 20.00mm |
| Body Diameter (mm) | 17.50mm |
| Shank Length (mm) | 50.00mm |
| Usable Length (mm) | 130.00mm |
| Overall Length (mm) | 213.50mm |
| Coolant Entry Style Code | 4 |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 4 |

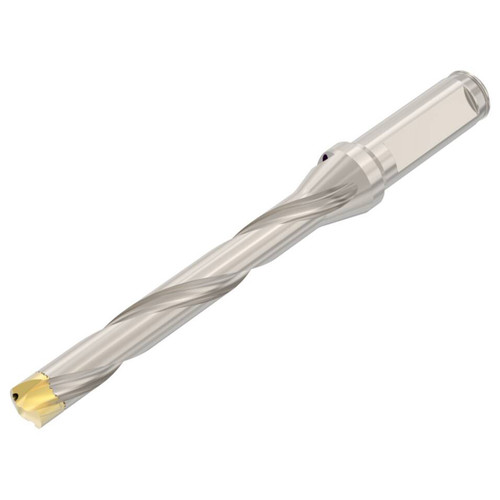

| Product Type | Replaceable-Tip Drill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Minimum Drill Diameter (Inch):
45/64"
Minimum Drill Diameter (Decimal Inch):
0.7100"
Minimum Drill Diameter (mm):
18.00mm
Maximum Drill Diameter (Inch):
3/4"
Maximum Drill Diameter (Decimal Inch):
0.7500"
Maximum Drill Diameter (mm):
18.99mm
Shank Diameter (Inch):
25/32"
Shank Diameter (Decimal Inch):
0.7900"
Shank Diameter (mm):
20.00mm
interval quantity:
1
