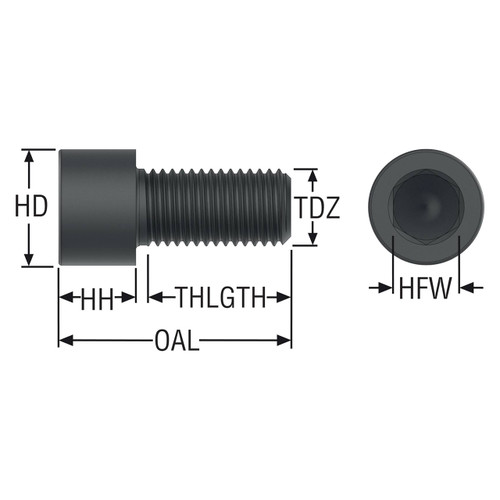

Product Specifications
| Manufacturer Part Number | 02433647 |
| Head Diameter (Decimal Inch) | 0.583" |
| Head Diameter (mm) | 14.80mm |
| Thread Diameter Size | M10 |
| Head Height (Decimal Inch) | 0.394" |
| Head Height (mm) | 10.00mm |
| Overall Length (Decimal Inch) | 1.575" |
| Overall Length (mm) | 40.00mm |
| Torque (Nm) | 40Nm |
| Thread Length (Decimal Inch) | 1.1811 |
| Thread Length (mm) | 30.0 |
| Product Type | Socket Cap Screw |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Head Diameter (Decimal Inch):
0.5827"
Head Diameter (mm):
14.80mm
Head Height (Decimal Inch):
0.3937"
Head Height (mm):
10.00mm
Overall Length (Decimal Inch):
1.5748"
Overall Length (mm):
40.00mm
Thread Length (Decimal Inch):
1.1811"
Thread Length (mm):
30.00mm
interval quantity:
1
