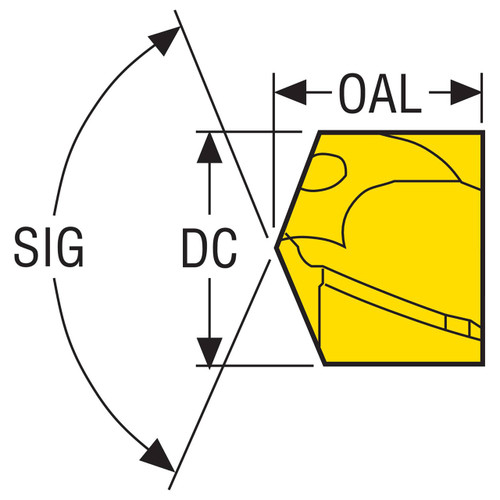

Product Specifications
| Manufacturer Part Number | 02469146 |
| Cutting Diameter (Decimal Inch) | 0.984" |
| Cutting Diameter (mm) | 25.00mm |
| Overall Length (Decimal Inch) | 0.598" |
| Overall Length (mm) | 15.20mm |
| Shank Width (mm) | 25.00mm |
| Functional Width (mm) | 32.00mm |
| Cutting Edge Count | 1 |
| Coolant Entry Style Code | 4 |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 4 |
| Tool Cutting Edge Angle (Degree) | 70 Degree |
| Corner Chamfer Angle (Degree) | 35 Degree |
| Point Angle (Degree) | 140 Degree |
| Material | Carbide |
| Product Type | Replaceable Drill Tip |
