Product Specifications
| Manufacturer Part Number | 02510287 |
| Minimum Cutting Diameter (Decimal Inch) | 0.158" |
| Minimum Cutting Diameter (mm) | 4.01mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.500" |
| Connection Diameter Machine Side (mm) | 12.70mm |
| Maximum Cutting Diameter (Decimal Inch) | 0.240" |
| Maximum Cutting Diameter (mm) | 6.10mm |
| Flange Diameter (Decimal Inch) | 0.827" |
| Shank Diameter (Decimal Inch) | 0.500" |
| Shank Diameter (mm) | 12.70mm |
| Maximum Cutting Depth (Decimal Inch) | 0.110" |
| Maximum Cutting Depth (mm) | 2.80mm |
| Body Length (Decimal Inch) | 0.984" |
| Body Length (mm) | 25.00mm |
| Shank Length (Decimal Inch) | 1.614" |
| Shank Length (mm) | 41.00mm |
| Tool Cutting Edge Angle (Degree) | 45 Degree |

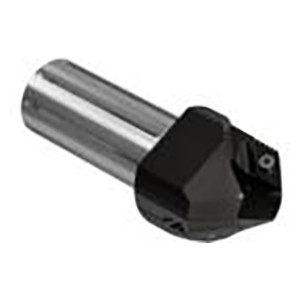

| Product Type | Combination Chamfer & Countersink Drill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Maximum Cutting Diameter (Inch):
15/64"
Maximum Cutting Diameter (Decimal Inch):
0.2400"
Maximum Cutting Diameter (mm):
6.10mm
Shank Diameter (Inch):
1/2"
Shank Diameter (Decimal Inch):
0.5000"
Shank Diameter (mm):
12.70mm
