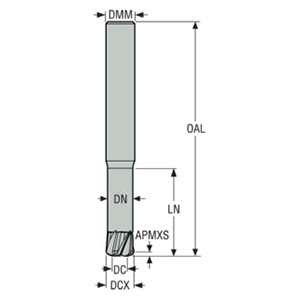

Product Specifications
| Manufacturer Part Number | 02511347 |
| Cutting Diameter (mm) | 6.00mm |
| Cutting Diameter 1 (mm) | 6.00mm |
| Connection Diameter Machine Side (mm) | 12.00mm |
| Maximum Cutting Diameter (mm) | 12.00mm |
| Shank Diameter (mm) | 12.00mm |
| Neck Diameter (mm) | 10.60mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 15.60mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 21.90mm |
| Cutting Edge Effective Length (mm) | 0.50mm |
| Neck Length (mm) | 36.00mm |
| Neck Length 1 (mm) | 36.00mm |
| Minimum Clamping Length (mm) | 45.00mm |
| Length Variant Cataloque | 2 |
| Theoretical Cutting Edge Length (mm) | 9.00mm |
| Overall Length (mm) | 80.00mm |
| Number of Flute | 3 |
| Pheripheral Cutting Edge Count | 3 |
| Maximum Depth of Cut (mm) | 1.42mm |
| Curved Cutting Edge Radius (mm) | 6.01mm |
| Corner Radius (mm) | 1.00mm |
| Axial Runout (mm) | 0.01mm |
| Radial Runout (mm) | 0.01mm |
| Programming Radius (mm) | 1.42mm |
| Cutting Edge Count | 3 |
| Face Cutting Edge Count | 3 |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 95 Degree |
| Maximum Ramping Angle (Degree) | 1.5 Degree |
| Cutting Direction | Right Hand |
| Flute Helix Hand | Straight |
| Cutting Geometry Type | JHF980 |
| Cutting Geometry Type Technical | JHF980 |
| Internal Coolant Channel | No |
| Cutting Item Material Type | Carbide |
| Shank Type | Cylindrical |
| Material | Carbide |
| Coating | MEGA |
| Product Type | Corner Radius End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Mill Diameter (Inch):
17/72"
Mill Diameter (Decimal Inch):
0.2362"
Mill Diameter (mm):
6.00mm
Number of Flutes:
3
Corner Radius (Inch):
1"
Corner Radius (Decimal Inch):
0.0394"
Corner Radius (mm):
1.00mm
Shank Type:
Cylindrical
Material:
Carbide
Finish/Coating:
MEGA
Shank Diameter (Inch):
15/32"
Shank Diameter (Decimal Inch):
0.4700"
Shank Diameter (mm):
12.00mm
Overall Length (Inch):
80"
Overall Length (Decimal Inch):
3.1496"
Overall Length (mm):
80.00mm
Cutting Direction:
Right Hand
interval quantity:
1
