Seco Tools 02566293 | 0.625" Inscribed Circle Diameter x 0.063" Radius x 0.187" Thickness 8 Cutting Edge Carbide Milling Insert

$30.60
Brand:
Seco Tools
Material:
Carbide
Inscribed Circle (Inch):
5/8"
Inscribed Circle (Decimal Inch):
0.6250"
Inscribed Circle (mm):
15.88mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1870"
Thickness (mm):
4.76mm
interval quantity:
1
SKU:
23277974
Weight:
0.03 LBS
Shipping:
Calculated at Checkout
Seco Tools 02566293 | 0.625" Inscribed Circle Diameter x 0.063" Radius x 0.187" Thickness 8 Cutting Edge Carbide Milling Insert

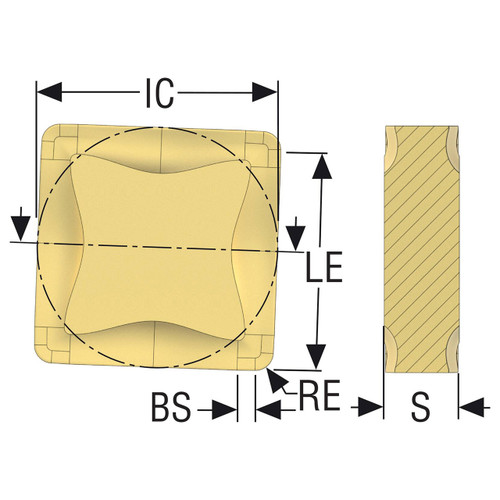

Product Specifications
Manufacturer Part Number02566293
Inscribed Circle Diameter (Decimal Inch)0.625"
Inscribed Circle Diameter (mm)15.88mm
Wiper Edge Length (Decimal Inch)0.054"
Wiper Edge Length (mm)1.37mm
Cutting Edge Effective Length (Decimal Inch)0.390"
Cutting Edge Effective Length (mm)9.90mm
Functional Width (Decimal Inch)0.642"
Functional Width (mm)16.30mm
Corner Radius (Decimal Inch)0.063"
Corner Radius (mm)1.60mm
Insert Thickness (Decimal Inch)0.187"
Insert Thickness (mm)4.76mm
Cutting Edge Count8
Cutting Geometry Type TechnicalM14
Pocket Seat Code of The CutterSN.F1504X
Insert Size And ShapeSNHF1504X
Insert Rake Angle (Degree)15 Degree
Insert HandNeutral
MaterialCarbide
Product TypeMilling Insert
