Product Specifications
| Manufacturer Part Number | 02722330 |
| Minimum Cutting Diameter Internal 3 (Decimal Inch) | 7.677" |
| Minimum Cutting Diameter Internal 3 (mm) | 195.00mm |
| Functional Length (Decimal Inch) | 6.000" |
| Functional Length (mm) | 152.40mm |
| Head Length (Decimal Inch) | 1.732" |
| Head Length (mm) | 44.00mm |
| Height of Tool Holder Shank (Decimal Inch) | 1.000" |
| Height of Tool Holder Shank (mm) | 25.40mm |
| Shank Width (Decimal Inch) | 1.000" |
| Shank Width (mm) | 25.40mm |
| Cutting Width (Decimal Inch) | 0.158" |
| Cutting Width (mm) | 4.00mm |
| Maximum Cutting Depth (Decimal Inch) | 0.787" |
| Maximum Cutting Depth (mm) | 20.00mm |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Cutting Direction | Right Hand |
| Coolant Pressure | Bar |
| Coolant Supply Property | 1 |
| Shank Type | Square shank |

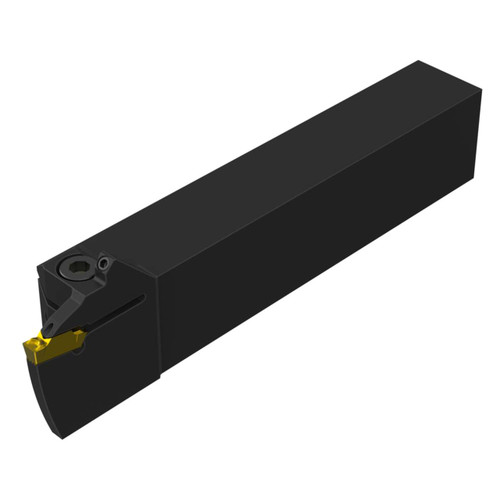

| Product Type | Indexable Grooving Toolholder |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Maximum Depth of Cut (Inch):
37/47"
Maximum Depth of Cut (Decimal Inch):
0.7874"
Maximum Depth of Cut (mm):
20.00mm
Shank Width (Inch):
1"
Shank Width (Decimal Inch):
1.0000"
Shank Width (mm):
25.40mm
interval quantity:
1
