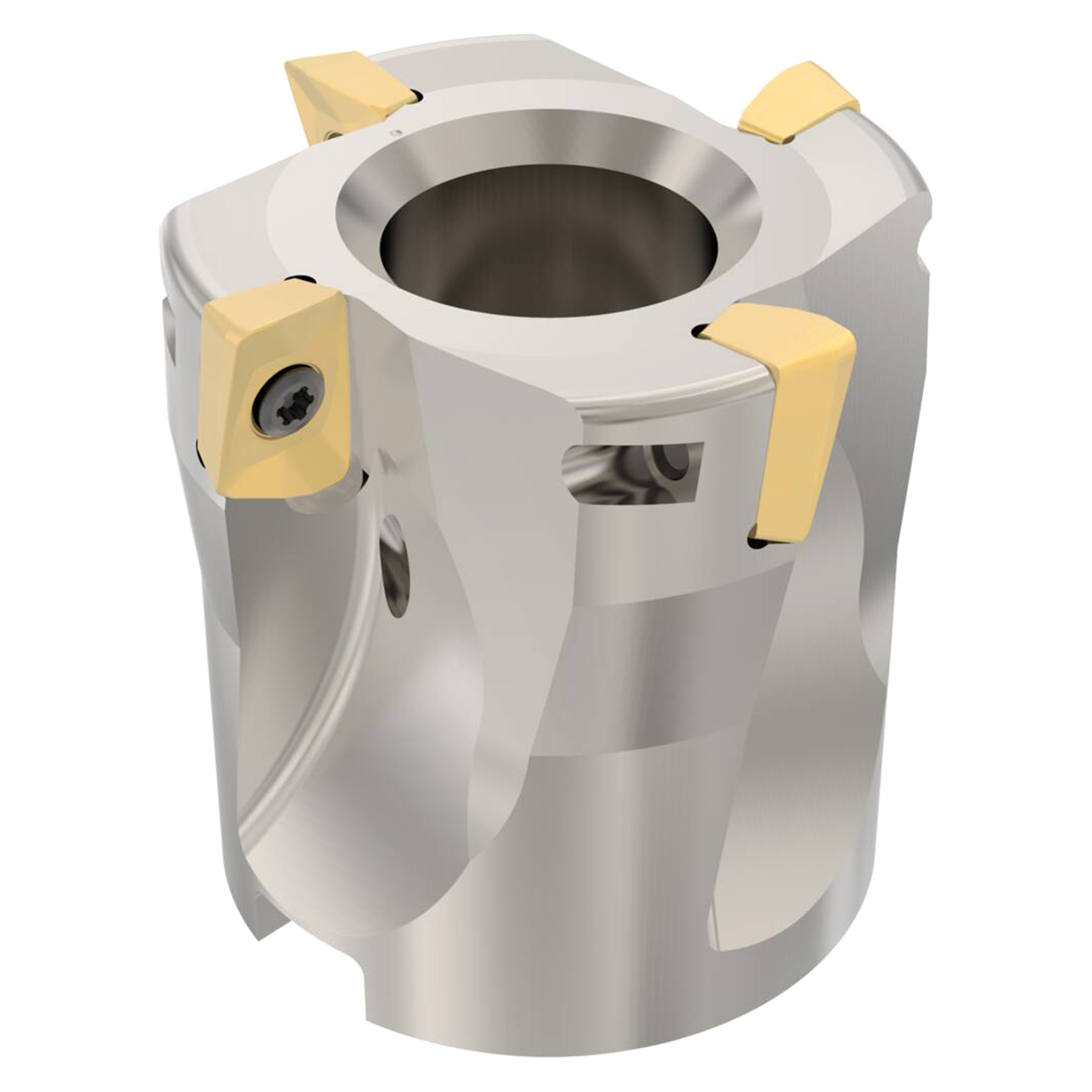

Seco Tools 02773432 | R220.69-01.50-10-4A 38.10mm Diameter x 9.00mm Depth of Cut x 40.00mm Functional Length -5.9 Degree Rake Radial Angle Indexable Square-Shoulder Face Mill

$616.92
Brand:
Seco Tools
Cutting Diameter (Inch):
1-1/2"
Cutting Diameter (Decimal Inch):
1.5000"
Cutting Diameter (mm):
38.10mm
Maximum Depth of Cut (Inch):
17/48"
Maximum Depth of Cut (Decimal Inch):
0.3543"
Maximum Depth of Cut (mm):
9.00mm
interval quantity:
1
SKU:
23281252
Weight:
0.37 LBS
Shipping:
Free Shipping
Seco Tools 02773432 | R220.69-01.50-10-4A 38.10mm Diameter x 9.00mm Depth of Cut x 40.00mm Functional Length -5.9 Degree Rake Radial Angle Indexable Square-Shoulder Face Mill

Product Specifications
Manufacturer Part Number02773432
Cutting Diameter (Decimal Inch)1.500"
Cutting Diameter (mm)38.10mm
Connection Bore Diameter (Decimal Inch)0.750"
Connection Bore Diameter (mm)19.05mm
Contact Surface Diameter Machine Side (Decimal Inch)1.378"
Contact Surface Diameter Machine Side (mm)35.00mm
Maximum Helical Interpolation Hole Diameter (Decimal Inch)2.933"
Maximum Helical Interpolation Hole Diameter (mm)74.50mm
Minimum Helical Interpolation Hole Diameter (Decimal Inch)2.559"
Minimum Helical Interpolation Hole Diameter (mm)65.00mm
Functional Length (Decimal Inch)1.575"
Functional Length (mm)40.00mm
Maximum Depth of Cut (mm)9.00mm
Maximum Depth of Cut (Decimal Inch)0.354"
Depth of Key Way (Decimal Inch)0.193"
Depth of Key Way (mm)4.90mm
Keyway Width (Decimal Inch)0.321"
Keyway Width (mm)8.15mm
Coolant Entry Style Code1
Cutting Pitch DensityNormal
Coolant Supply Property1
Coolant Exit Style Code3
Rake Radial Angle (Degree)-5.9 Degree
Rake Radial Angle (Degree)-5.9 Degree
Rake Orthogonal Angle (Degree)-5.9 Degree
Axial Rake Angle (Degree)8 Degree
Tool Cutting Edge Angle (Degree)90 Degree
Tool Cutting Edge Angle In Feed Direction End (Degree)90 Degree
Tool Cutting Edge Angle In Feed Direction Side (Degree)90 Degree
Maximum Ramping Angle (Degree)1.5 Degree
Maximum Rotational Speed (rpm)18600 rpm
Shank TypeArbor
Product TypeIndexable Square-Shoulder Face Mill
