Product Specifications
| Manufacturer Part Number | 02846692 |
| Cutting Diameter (mm) | 100.00mm |
| Minimum Cutting Diameter (mm) | 99.00mm |
| Connection Diameter Machine Side (mm) | 36.00mm |
| Maximum Cutting Diameter (mm) | 100.00mm |
| Flange Diameter (mm) | 63.00mm |
| Shank Diameter (mm) | 36.00mm |
| Shank Length (mm) | 40.00mm |
| Usable Length (mm) | 500.00mm |
| Overall Length (mm) | 185.00mm |
| Adjustment Range (mm) | 5.00mm |
| Shank Type | Graflex |
| Coolant Entry Style Code | 1 |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Tool Cutting Edge Angle (Degree) | 87 Degree |

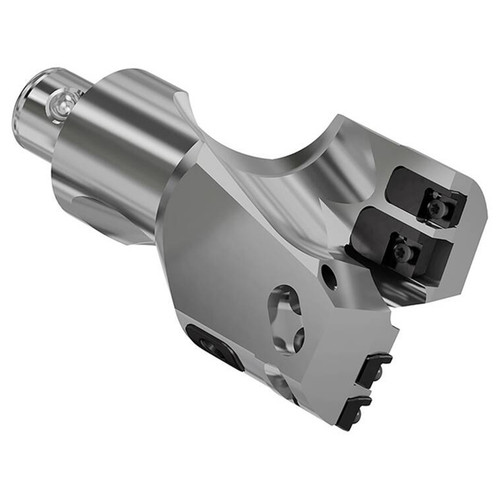

| Product Type | Modular Drill Head |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Maximum Drill Diameter (Inch):
3-15/16"
Maximum Drill Diameter (Decimal Inch):
3.9400"
Maximum Drill Diameter (mm):
100.00mm
Shank Diameter (Inch):
1-27/64"
Shank Diameter (Decimal Inch):
1.4200"
Shank Diameter (mm):
36.00mm
