Product Specifications
| Manufacturer Part Number | 02846695 |
| Cutting Diameter (mm) | 160.00mm |
| Minimum Cutting Diameter (mm) | 159.00mm |
| Connection Diameter Machine Side (mm) | 46.00mm |
| Maximum Cutting Diameter (mm) | 160.00mm |
| Flange Diameter (mm) | 90.00mm |
| Shank Diameter (mm) | 46.00mm |
| Shank Length (mm) | 50.00mm |
| Usable Length (mm) | 500.00mm |
| Overall Length (mm) | 210.00mm |
| Adjustment Range (mm) | 5.00mm |
| Shank Type | Graflex |
| Coolant Entry Style Code | 1 |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Tool Cutting Edge Angle (Degree) | 87 Degree |

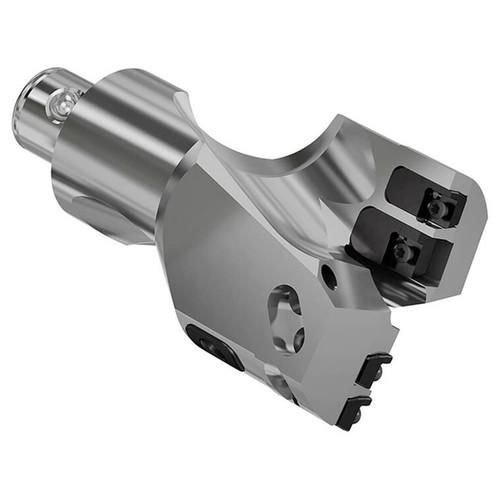

| Product Type | Modular Drill Head |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Maximum Drill Diameter (Inch):
6-19/64"
Maximum Drill Diameter (Decimal Inch):
6.3000"
Maximum Drill Diameter (mm):
160.00mm
Shank Diameter (Inch):
1-13/16"
Shank Diameter (Decimal Inch):
1.8100"
Shank Diameter (mm):
46.00mm
