Seco Tools 02923708 | 0.472" Inscribed Circle Diameter x 0.236" Radius x 0.187" Thickness 6 Cutting Edge Carbide Disc Milling Insert

$18.60 $14.32
(You save $4.28)
Brand:
Seco Tools
Material:
Carbide
Inscribed Circle (Inch):
42/89"
Inscribed Circle (Decimal Inch):
0.4720"
Inscribed Circle (mm):
12.00mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1870"
Thickness (mm):
4.76mm
interval quantity:
10
SKU:
23282577
UPC:
Weight:
0.01 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout
Seco Tools 02923708 | 0.472" Inscribed Circle Diameter x 0.236" Radius x 0.187" Thickness 6 Cutting Edge Carbide Disc Milling Insert

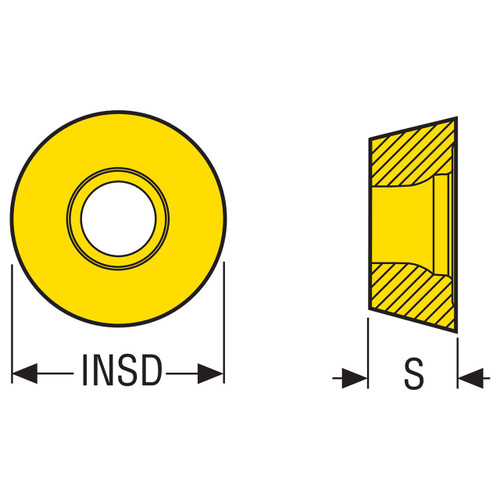

Product Specifications
Manufacturer Part Number02923708
Fixing Hole Diameter (Decimal Inch)0.177"
Fixing Hole Diameter (mm)4.50mm
Inscribed Circle Diameter (Decimal Inch)0.472"
Inscribed Circle Diameter (mm)12.00mm
Insert Diameter (Decimal Inch)0.472"
Insert Diameter (mm)12.00mm
Corner Radius (Decimal Inch)0.236"
Corner Radius (mm)6.00mm
Insert Thickness (Decimal Inch)0.187"
Insert Thickness (mm)4.76mm
Clearance Angle Major (Degree)11 Degree
Cutting Edge Count6
Cutting Geometry Type TechnicalM08
Pocket Seat Code of The CutterRP..1204
Insert Size And ShapeRPHT1204
Insert Rake Angle (Degree)16 Degree
Insert HandNeutral
MaterialCarbide
Product TypeDisc Milling Insert
