Product Specifications
| Manufacturer Part Number | 02998761 |
| Body Diameter (Decimal Inch) | 1.181" |
| Body Diameter (mm) | 30.00mm |
| Body Diameter 1 (Decimal Inch) | 1.201" |
| Body Diameter 1 (mm) | 30.50mm |
| Body Length (Decimal Inch) | 2.597" |
| Body Length (mm) | 65.95mm |
| Body Length 1 (Decimal Inch) | 0.984" |
| Body Length 1 (mm) | 25.00mm |
| Body Length 2 (Decimal Inch) | 2.400" |
| Body Length 2 (mm) | 60.95mm |
| Body Length 3 (Decimal Inch) | 2.597" |
| Body Length 3 (mm) | 65.95mm |
| Functional Length (Decimal Inch) | 3.347" |
| Functional Length (mm) | 85.00mm |
| Protruding Length (Decimal Inch) | 3.347" |
| Protruding Length (mm) | 85.00mm |
| Overall Length (Decimal Inch) | 6.039" |
| Overall Length (mm) | 153.40mm |
| Data Chip Provision | 1 |

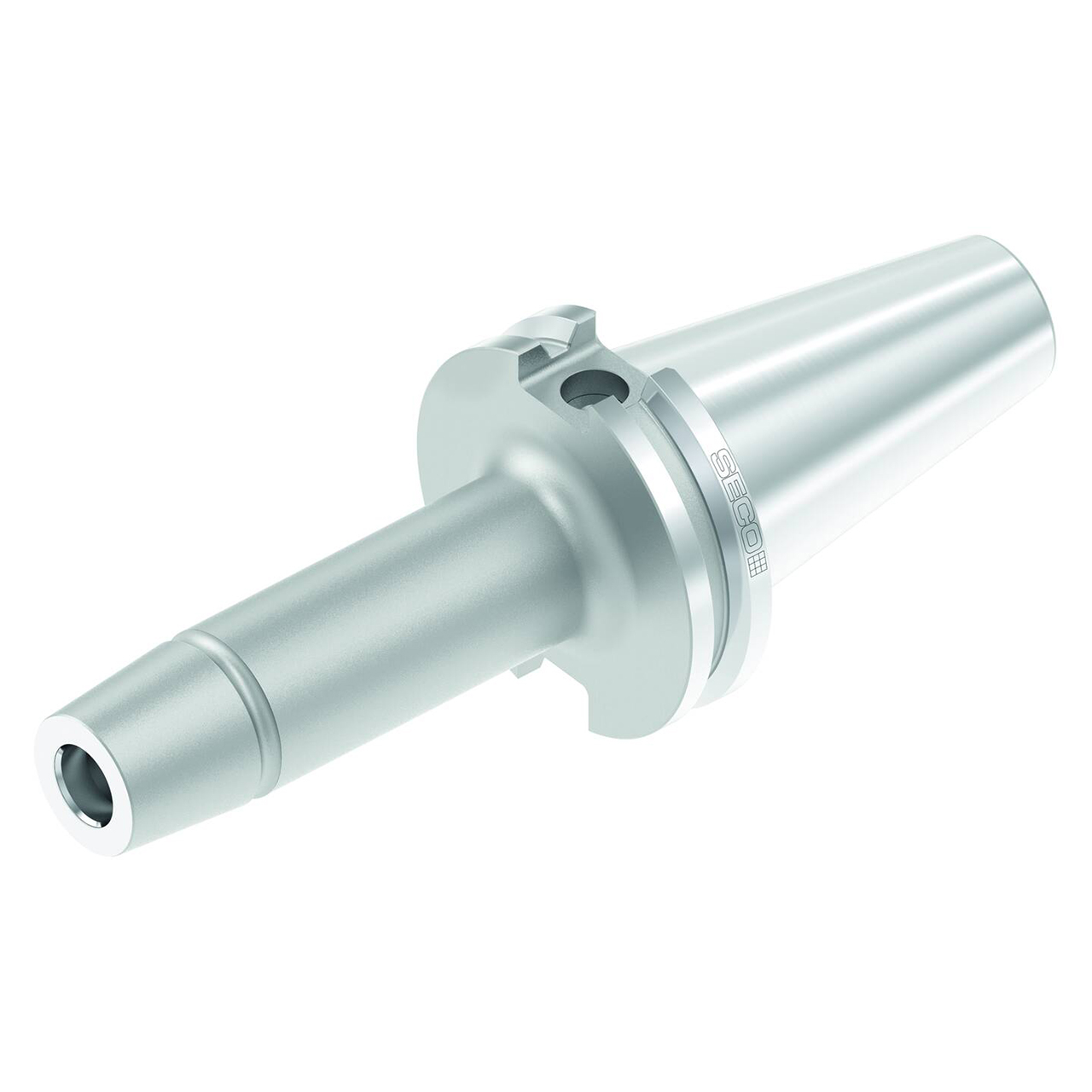

| Product Type | End Mill Adapter |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Body Diameter (Inch):
1-2/11"
Body Diameter (Decimal Inch):
1.1810"
Body Diameter (mm):
30.00mm
Overall Length (Inch):
6-3/77"
Overall Length (Decimal Inch):
6.0390"
Overall Length (mm):
153.40mm
