Product Specifications
| Manufacturer Part Number | 03042028 |
| Connection Diameter Machine Side (mm) | 16.00mm |
| Shank Diameter (mm) | 16.00mm |
| Contact Surface Diameter Workpiece Side (mm) | 9.00mm |
| Functional Length (mm) | 12.20mm |
| Protruding Length (mm) | 26.20mm |
| Overall Length (mm) | 74.20mm |
| Maximum Rotational Speed (rpm) | 30000 rpm |
| Coolant Supply Property | 1 |
| Shank Type | Cylindrical |

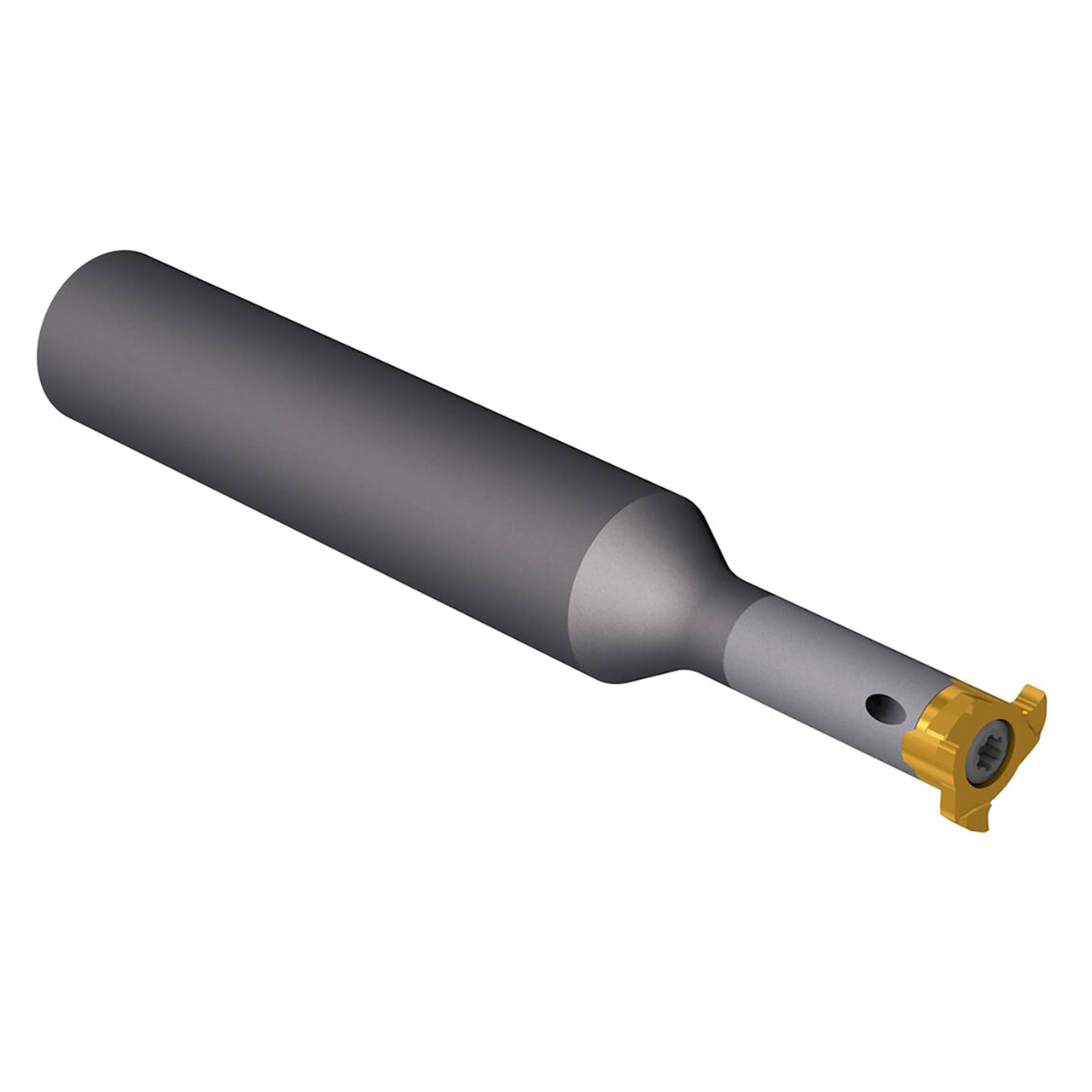

| Product Type | Replaceable Tip Milling Shank |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Shank Type:
Cylindrical
Shank Diameter (Inch):
5/8"
Shank Diameter (Decimal Inch):
0.6300"
Shank Diameter (mm):
16.00mm
Overall Length (Inch):
2-82/89"
Overall Length (Decimal Inch):
2.9213"
Overall Length (mm):
74.20mm
interval quantity:
1
