Product Specifications
| Manufacturer Part Number | 03077320 |
| Body Diameter (Decimal Inch) | 0.728" |
| Body Diameter (mm) | 18.50mm |
| Body Diameter 1 (Decimal Inch) | 1.969" |
| Body Diameter 1 (mm) | 50.00mm |
| Thread Diameter Size | M10 |
| Body Length (Decimal Inch) | 0.197" |
| Body Length (mm) | 5.00mm |
| Protruding Length (Decimal Inch) | 0.610" |
| Protruding Length (mm) | 15.50mm |
| Overall Length (Decimal Inch) | 1.831" |
| Overall Length (mm) | 46.50mm |

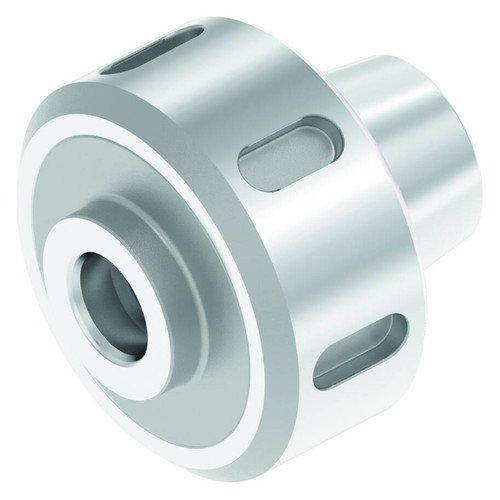

| Product Type | Collet Nut |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Material:
Carbide
Inscribed Circle (Inch):
1/2"";Inscribed Circle (Decimal Inch)=0.5000""""
Inscribed Circle (mm):
12.70mm
Thickness (Inch):
3/16"";Thickness (Decimal Inch)=0.1870""""
Thickness (mm):
4.76mm
Corner Radius (Inch):
1/64"";Corner Radius (Decimal Inch)=0.0080""""
Corner Radius (mm):
0.20mm
interval quantity:
1
