Seco Tools 03142923 | C5-ASHL45-085-20JETI Modular Tool Holding System Adapter

$982.00 $952.54
(You save $29.46)
Brand:
Seco Tools
interval quantity:
1
SKU:
23286182
UPC:
Weight:
3.30 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping
Seco Tools 03142923 | C5-ASHL45-085-20JETI Modular Tool Holding System Adapter

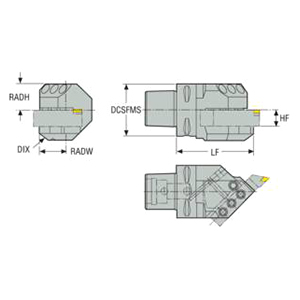

Product Specifications
Manufacturer Part Number03142923
Contact Surface Diameter Machine Side (Decimal Inch)1.969"
Contact Surface Diameter Machine Side (mm)50.00mm
Maximum Tool Changer Interference Diameter (Decimal Inch)3.347"
Maximum Tool Changer Interference Diameter (mm)85.00mm
Functional Height (Decimal Inch)0.787"
Functional Height (mm)20.00mm
Functional Length (Decimal Inch)3.347"
Functional Length (mm)85.00mm
Machine Side GroupCapto
Radial Body Height (Decimal Inch)1.457"
Radial Body Width (Decimal Inch)1.260"
Radial Body Width (mm)32.00mm
Product TypeModular Tool Holding System Adapter
