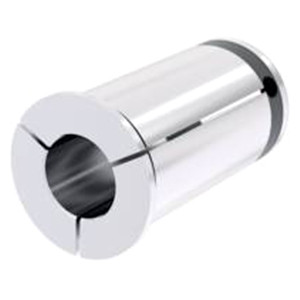

Seco Tools 03211226 | 05FPMC2012 12.00mm Connection Diameter x 47.50mm Shank Length Milling Chuck Collet

$94.70 $89.02
(You save $5.68)
Brand:
Seco Tools
Flange Diameter (Decimal Inch):
0.9449"
Flange Diameter (mm):
24.00mm
Flange Thickness (Decimal Inch):
0.0984"
Flange Thickness (mm):
2.50mm
Shank Length (Decimal Inch):
1.8701"
Shank Length (mm):
47.50mm
interval quantity:
1
SKU:
55075176
UPC:
Weight:
0.14 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Seco Tools 03211226 | 05FPMC2012 12.00mm Connection Diameter x 47.50mm Shank Length Milling Chuck Collet

Product Specifications
Manufacturer Part Number03211226
Connection Bore Diameter (Decimal Inch)0.472"
Connection Bore Diameter (mm)12.00mm
Connection Diameter (Decimal Inch)0.787"
Connection Diameter (mm)20.00mm
Flange Diameter (Decimal Inch)0.945"
Flange Diameter (mm)24.00mm
Shank Length (Decimal Inch)1.870"
Shank Length (mm)47.50mm
Clamping Length (Decimal Inch)1.378"
Clamping Length (mm)35.00mm
Flange Thickness (Decimal Inch)0.098"
Flange Thickness (mm)2.50mm
Product TypeMilling Chuck Collet
