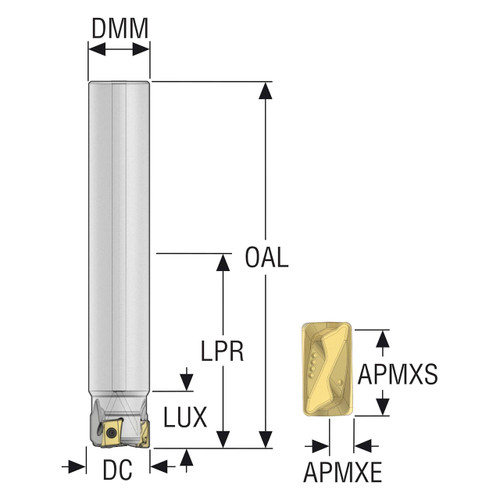

Product Specifications
| Manufacturer Part Number | 03212901 |
| Cutting Diameter (Decimal Inch) | 0.992" |
| Cutting Diameter (mm) | 25.20mm |
| Connection Diameter Machine Side (Decimal Inch) | 1.500" |
| Connection Diameter Machine Side (mm) | 38.10mm |
| Maximum Cutting Diameter (Decimal Inch) | 1.500" |
| Maximum Cutting Diameter (mm) | 38.10mm |
| Shank Diameter (Decimal Inch) | 1.500" |
| Shank Diameter (mm) | 38.10mm |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 2.921" |
| Maximum Helical Interpolation Hole Diameter (mm) | 74.20mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 2.492" |
| Minimum Helical Interpolation Hole Diameter (mm) | 63.30mm |
| Protruding Length (Decimal Inch) | 5.313" |
| Protruding Length (mm) | 134.94mm |
| Shank Length (Decimal Inch) | 6.102" |
| Shank Length (mm) | 155.00mm |
| Overall Length (Decimal Inch) | 8.000" |
| Overall Length (mm) | 203.20mm |
| Maximum Depth of Cut (mm) | 1.87mm |
| Maximum Depth of Cut (Decimal Inch) | 0.074" |
| Programming Radius (Decimal Inch) | 0.137" |
| Programming Radius (mm) | 3.47mm |
| Uncut Thickness (Decimal Inch) | 0.0276 |
| Uncut Thickness (mm) | 0.7 |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Close |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Rake Radial Angle (Degree) | -8 Degree |
| Rake Radial Angle (Degree) | -8 Degree |
| Rake Orthogonal Angle (Degree) | -8 Degree |
| Axial Rake Angle (Degree) | 2 Degree |
| Maximum Ramping Angle (Degree) | 3.4 Degree |
| Maximum Rotational Speed (rpm) | 28500 rpm |
| Insert Shape Code | L |
| Shank Type | Cylindrical |
| Product Type | Indexable High-Feed End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Cutting Diameter (Inch):
1"
Cutting Diameter (Decimal Inch):
0.9921"
Cutting Diameter (mm):
25.20mm
Maximum Depth of Cut (Inch):
5/68"
Maximum Depth of Cut (Decimal Inch):
0.0736"
Maximum Depth of Cut (mm):
1.87mm
Shank Type:
Cylindrical
Shank Diameter (Inch):
1-1/2"
Shank Diameter (Decimal Inch):
1.5000"
Shank Diameter (mm):
38.10mm
