Seco Tools 03241865 | 0.551" Inscribed Circle Diameter x 0.039" Radius x 0.259" Thickness 8 Cutting Edge Carbide Milling Insert

$32.30 $24.87
(You save $7.43)
Brand:
Seco Tools
Material:
Carbide
Inscribed Circle (Inch):
27/49"
Inscribed Circle (Decimal Inch):
0.5510"
Inscribed Circle (mm):
14.00mm
Thickness (Inch):
7/27"
Thickness (Decimal Inch):
0.2590"
Thickness (mm):
6.59mm
interval quantity:
10
SKU:
23286627
UPC:
Weight:
0.03 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout
Seco Tools 03241865 | 0.551" Inscribed Circle Diameter x 0.039" Radius x 0.259" Thickness 8 Cutting Edge Carbide Milling Insert

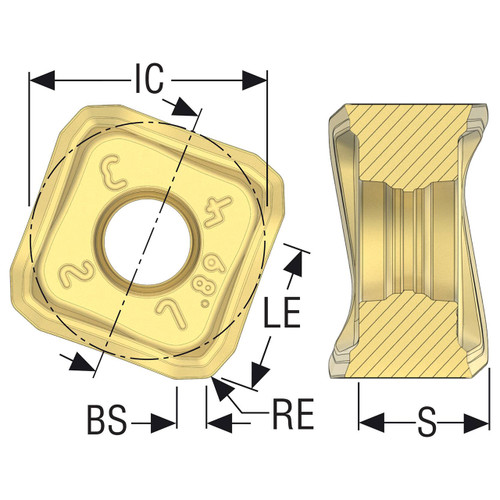

Product Specifications
Manufacturer Part Number03241865
Fixing Hole Diameter (Decimal Inch)0.185"
Fixing Hole Diameter (mm)4.70mm
Inscribed Circle Diameter (Decimal Inch)0.551"
Inscribed Circle Diameter (mm)14.00mm
Wiper Edge Length (Decimal Inch)0.059"
Wiper Edge Length (mm)1.50mm
Cutting Edge Effective Length (Decimal Inch)0.374"
Cutting Edge Effective Length (mm)9.50mm
Corner Radius (Decimal Inch)0.039"
Corner Radius (mm)1.00mm
Insert Thickness (Decimal Inch)0.259"
Insert Thickness (mm)6.59mm
Insert Thickness 1 (Decimal Inch)0.198"
Insert Thickness 1 (mm)5.04mm
Cutting Edge Count8
Cutting Geometry Type TechnicalM10
Pocket Seat Code of The CutterSN.X1407Z
Insert Size And ShapeSNMX1407Z
Insert Rake Angle (Degree)20 Degree
Insert HandRight Hand
MaterialCarbide
Product TypeMilling Insert
