Product Specifications
| Manufacturer Part Number | 03273280 |
| Fixing Hole Diameter (Decimal Inch) | 0.138" |
| Fixing Hole Diameter (mm) | 3.50mm |

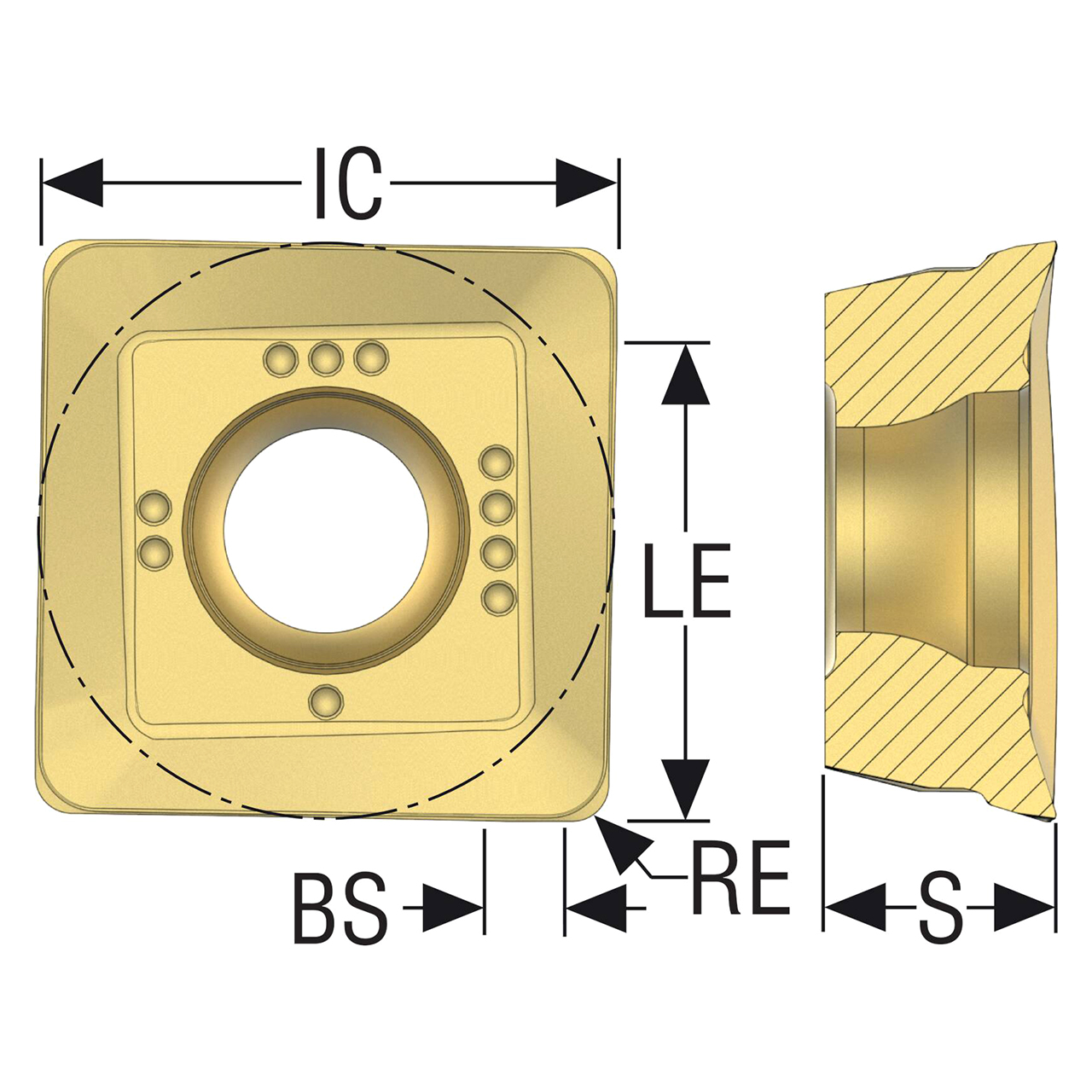

| Inscribed Circle Diameter (Decimal Inch) | 0.376" |
| Inscribed Circle Diameter (mm) | 9.55mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.315" |
| Cutting Edge Effective Length (mm) | 8.00mm |
| Theoretical Cutting Edge Length (Decimal Inch) | 0.376" |
| Theoretical Cutting Edge Length (mm) | 9.55mm |
| Wiper Edge Length (Decimal Inch) | 0.051" |
| Wiper Edge Length (mm) | 1.30mm |
| Corner Radius (Decimal Inch) | 0.032" |
| Corner Radius (mm) | 0.80mm |
| Insert Thickness (Decimal Inch) | 0.156" |
| Insert Thickness (mm) | 3.97mm |
| Cutting Edge Count | 4 |
| Clearance Angle Major (Degree) | 15 Degree |
| Insert Included Angle (Degree) | 90 Degree |
| Insert Rake Angle (Degree) | 19 Degree |
| Insert Hand | Right Hand |
| Cutting Geometry Type | M |
| Cutting Geometry Type Technical | M10 |
| Pocket Seat Code of The Cutter | SO.X09T3 |
| Insert Size And Shape | SONX09T3 |
| Material | Carbide |
| Product Type | Face Milling Insert |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Material:
Carbide
Inscribed Circle (Inch):
3/8"
Inscribed Circle (Decimal Inch):
0.3760"
Inscribed Circle (mm):
9.55mm
Thickness (Inch):
5/32"
Thickness (Decimal Inch):
0.1563"
Thickness (mm):
3.97mm
