Seco Tools 03276195 |DCMT070202-F1 0.250" Inscribed Circle Diameter x 0.008" Corner Radius x 0.094" Thickness 2 Cutting Edge Carbide Turning Insert

$16.10 $11.91
(You save $4.19)
Brand:
Seco Tools
Material:
Carbide
Inscribed Circle (Inch):
1/4"
Inscribed Circle (Decimal Inch):
0.2500"
Inscribed Circle (mm):
6.35mm
Thickness (Inch):
3/32"
Thickness (Decimal Inch):
0.0940"
Thickness (mm):
2.38mm
Corner Radius (Inch):
1/64"
Corner Radius (Decimal Inch):
0.0080"
Corner Radius (mm):
0.20mm
interval quantity:
10
SKU:
23287483
UPC:
Weight:
1.23 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout
Seco Tools 03276195 |DCMT070202-F1 0.250" Inscribed Circle Diameter x 0.008" Corner Radius x 0.094" Thickness 2 Cutting Edge Carbide Turning Insert

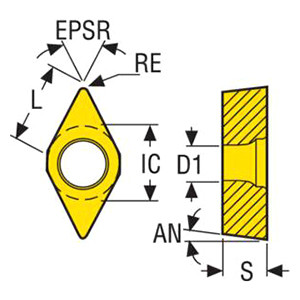

Product Specifications
Manufacturer Part Number03276195
Fixing Hole Diameter (Decimal Inch)0.114"
Fixing Hole Diameter (mm)2.90mm
Inscribed Circle Diameter (Decimal Inch)0.250"
Inscribed Circle Diameter (mm)6.35mm
Cutting Edge Effective Length (Decimal Inch)0.252"
Cutting Edge Effective Length (mm)6.40mm
Theoretical Cutting Edge Length (Decimal Inch)0.305"
Theoretical Cutting Edge Length (mm)7.75mm
Corner Radius (Decimal Inch)0.008"
Corner Radius (mm)0.20mm
Insert Thickness (Decimal Inch)0.094"
Insert Thickness (mm)2.38mm
Cutting Edge Count2
Clearance Angle Major (Degree)7 Degree
Insert Included Angle (Degree)55 Degree
Insert HandNeutral
Insert Size And ShapeDC0702
Insert Shape CodeD
MaterialCarbide
Product TypeTurning Insert

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
