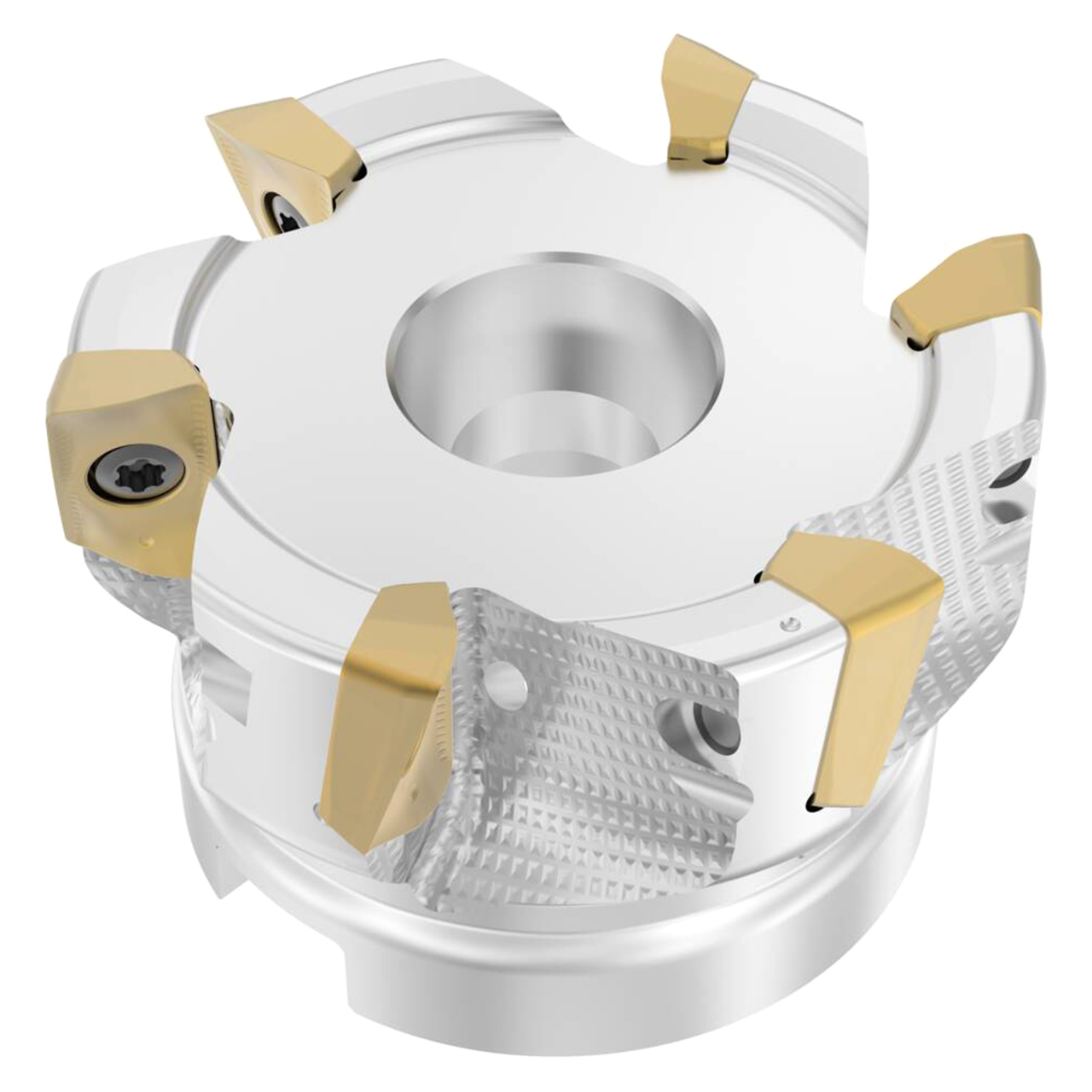

Product Specifications
Manufacturer Part Number | 03336115 |
Cutting Diameter (mm) | 63.00mm |
Connection Bore Diameter (mm) | 27.00mm |
Contact Surface Diameter Machine Side (mm) | 56.00mm |
Maximum Helical Interpolation Hole Diameter (mm) | 123.70mm |
Minimum Helical Interpolation Hole Diameter (mm) | 109.50mm |
Functional Length (mm) | 40.00mm |
Maximum Depth of Cut (mm) | 15.00mm |
Depth of Key Way (mm) | 7.00mm |
Keyway Width (mm) | 12.40mm |
Coolant Entry Style Code | 1 |
Cutting Pitch Differential | 1 |
Cutting Pitch Density | Close |
Coolant Supply Property | 1 |
Coolant Exit Style Code | 3 |
Rake Radial Angle (Degree) | -5.3 Degree |
Rake Radial Angle (Degree) | -5.3 Degree |
Rake Orthogonal Angle (Degree) | -5.3 Degree |
Axial Rake Angle (Degree) | 9 Degree |
Tool Cutting Edge Angle (Degree) | 90 Degree |
Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
Maximum Ramping Angle (Degree) | 2 Degree |
Maximum Rotational Speed (rpm) | 10500 rpm |
Shank Type | Arbor |
Product Type | Indexable Square-Shoulder Face Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Cutting Diameter (Inch):
2-12/25"
Cutting Diameter (Decimal Inch):
2.4803"
Cutting Diameter (mm):
63.00mm
Maximum Depth of Cut (Inch):
13/22"
Maximum Depth of Cut (Decimal Inch):
0.5906"
Maximum Depth of Cut (mm):
15.00mm
interval quantity:
1
