Seco Tools 10001041 | XOMX1605 Size x 0.063" Radius x 0.234" Thickness 2 Cutting Edge Carbide Square Shoulder Milling Insert

$31.00 $23.87
(You save $7.13)
Brand:
Seco Tools
Material:
Carbide
Thickness (Inch):
11/47"
Thickness (Decimal Inch):
0.2340"
Thickness (mm):
5.94mm
interval quantity:
10
SKU:
23288651
UPC:
Weight:
0.02 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout
Seco Tools 10001041 | XOMX1605 Size x 0.063" Radius x 0.234" Thickness 2 Cutting Edge Carbide Square Shoulder Milling Insert

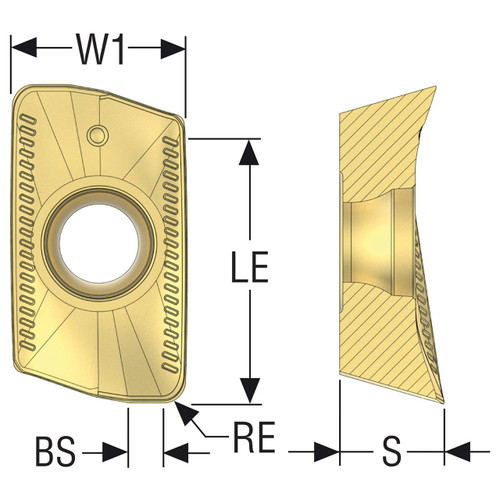

Product Specifications
Manufacturer Part Number10001041
Fixing Hole Diameter (Decimal Inch)0.177"
Fixing Hole Diameter (mm)4.50mm
Wiper Edge Length (Decimal Inch)0.079"
Wiper Edge Length (mm)2.00mm
Cutting Edge Effective Length (Decimal Inch)0.606"
Cutting Edge Effective Length (mm)15.40mm
Insert Width (Decimal Inch)0.402"
Insert Width (mm)10.20mm
Corner Radius (Decimal Inch)0.063"
Corner Radius (mm)1.60mm
Insert Thickness (Decimal Inch)0.234"
Insert Thickness (mm)5.94mm
Clearance Angle Major (Degree)15.2 Degree
Cutting Edge Count2
Cutting Geometry TypeME
Cutting Geometry Type TechnicalME11
Pocket Seat Code of The CutterXO.X1605
Insert Size And ShapeXOMX1605
Insert Rake Angle (Degree)18 Degree
Insert HandRight Hand
MaterialCarbide
Product TypeSquare Shoulder Milling Insert
