Product Specifications
| Manufacturer Part Number | 10004076 |
| Cutting Diameter (mm) | 2.90mm |
| Connection Diameter Machine Side (mm) | 4.00mm |
| Shank Diameter (mm) | 4.00mm |
| Chip Flute Length (mm) | 14.50mm |
| Functional Length Secondary (mm) | 17.00mm |
| Shank Length (mm) | 27.00mm |
| Usable Length (mm) | 9.00mm |
| Overall Length (mm) | 44.00mm |
| Point Length (mm) | 0.87mm |
| Corner Chamfer Width (mm) | 0.08mm |
| Tool Cutting Edge Angle (Degree) | 70 Degree |
| Corner Chamfer Angle (Degree) | 35 Degree |
| Flute Helix Angle (Degree) | 30 Degree |
| Flute Helix Hand | Right Hand |
| Cutting Geometry Type | MS |
| Coolant Entry Style Code | 4 |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 4 |
| Shank Type | Cylindrical |
| Material | Carbide |

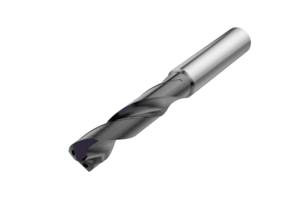

| Product Type | Screw Machine Length Drill Bit |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Related Products
Brand:
Seco Tools
Drill Point Angle:
140 Degree
Flute Length (Inch):
37/64"
Flute Length (Decimal Inch):
0.5700"
Flute Length (mm):
14.50mm
Overall Length (Inch):
1-47/64"
Overall Length (Decimal Inch):
1.7300"
Overall Length (mm):
44.00mm
Material:
Carbide
Shank Type:
Cylindrical
interval quantity:
1
