Product Specifications
| Manufacturer Part Number | 10070316 |
| Minimum Cutting Diameter Internal (Decimal Inch) | 4.724" |
| Minimum Cutting Diameter Internal (mm) | 120.00mm |
| Minimum Cutting Diameter Internal 3 (Decimal Inch) | 5.906" |
| Minimum Cutting Diameter Internal 3 (mm) | 150.00mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 3.150" |
| Contact Surface Diameter Machine Side (mm) | 80.00mm |
| Functional Length (Decimal Inch) | 3.150" |
| Functional Length (mm) | 80.00mm |
| Head Length (Decimal Inch) | 1.575" |
| Head Length (mm) | 40.00mm |
| Maximum Radial Cutting Depth (Decimal Inch) | 0.067" |
| Maximum Radial Cutting Depth (mm) | 1.70mm |
| Maximum Cutting Depth (Decimal Inch) | 0.063" |
| Maximum Cutting Depth (mm) | 1.60mm |
| Tool Cutting Edge Angle (Degree) | 95 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 94.39 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 95 Degree |
| Inclination Angle (Degree) | -6 Degree |
| Rake Radial Angle (Degree) | -6.53 Degree |
| Rake Orthogonal Angle (Degree) | -6 Degree |
| Maximum Ramping Angle (Degree) | 4.3 Degree |
| Cutting Direction | Right Hand |
| Coolant Entry Style Code | 1 |
| Coolant Pressure | Bar |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 10 |
| Data Chip Provision | 1 |
| Insert Clamping System | D |
| Shank Type | Seco-Capto |
| Insert Shape Code | C |

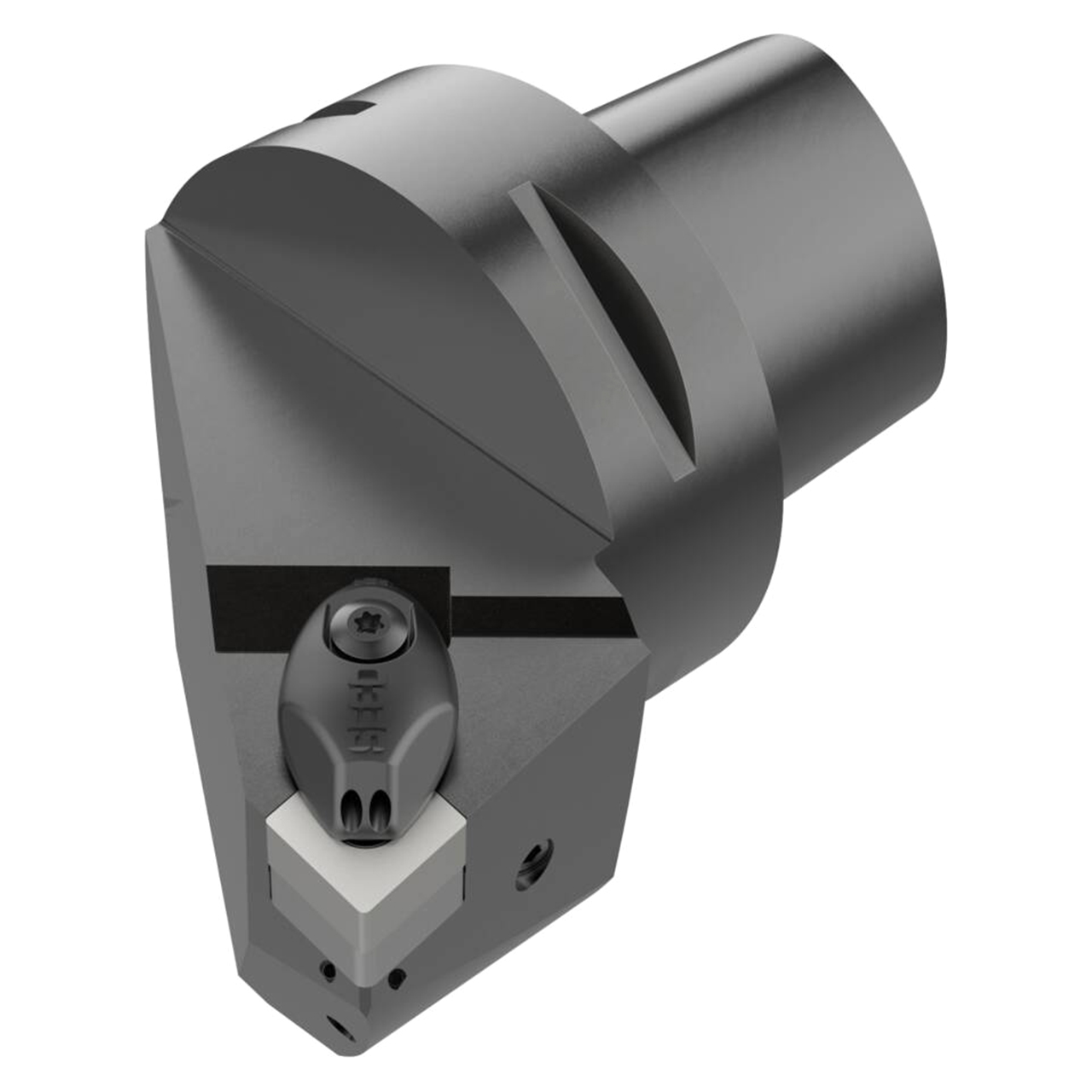

| Product Type | Modular Turning Head |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Cutting Direction:
Right Hand
Head Length (Inch):
1-37/64"
Head Length (Decimal Inch):
1.5750"
Head Length (mm):
40.00mm
interval quantity:
1
