Seco Tools 10139217 | T33-FSN02C03-4X0.5-65R MF4X0.5 Thread Size x 4.00mm Diameter x 4.50mm Shank x 64.60mm OAL 5 Flute TiAIN+TiN Coated HSS-E-PM Thread Forming Tap

$103.00 $71.07
(You save $31.93)
Brand:
Seco Tools
Thread Size:
MF4X0.5
Number of Flutes:
5
Finish/Coating:
TiAIN+TiN
Material:
HSS-E-PM
Thread Standard:
MF
interval quantity:
1
SKU:
17994093
UPC:
Weight:
0.01 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Seco Tools 10139217 | T33-FSN02C03-4X0.5-65R MF4X0.5 Thread Size x 4.00mm Diameter x 4.50mm Shank x 64.60mm OAL 5 Flute TiAIN+TiN Coated HSS-E-PM Thread Forming Tap

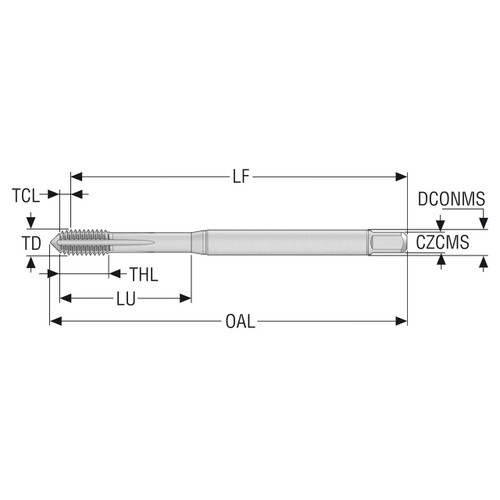

Product Specifications
Manufacturer Part Number10139217
Thread Diameter (Decimal Inch)0.158"
Thread Diameter (mm)4.00mm
Threading Chamfer Length (Decimal Inch)0.055"
Threading Chamfer Length (mm)1.40mm
Tap Chamfer Length (Decimal Inch)0.055"
Tap Chamfer Length (mm)1.40mm
Connection Diameter Machine Side (Decimal Inch)0.177"
Connection Diameter Machine Side (mm)4.50mm
Shank Diameter (Decimal Inch)0.177"
Shank Diameter (mm)4.50mm
Functional Length (Decimal Inch)2.425"
Functional Length (mm)61.60mm
Usable Length (Decimal Inch)0.827"
Usable Length (mm)21.00mm
Overall Length (Decimal Inch)2.543"
Overall Length (mm)64.60mm
Thread Length (Decimal Inch)0.276"
Thread Length (mm)7.00mm
Thread Diameter SizeMF4X0.5
Recommended Premachined Hole Diameter (Decimal Inch)0.150"
Recommended Premachined Hole Diameter (mm)3.80mm
Connection Size Code4.50X3.40
Connection Size Code Machine Side4.50X3.40
Maximum Premachined Hole Diameter (Decimal Inch)0.150"
Maximum Premachined Hole Diameter (mm)3.80mm
Minimum Thread Pitch (Decimal Inch)0.020"
Minimum Thread Pitch (mm)0.50mm
Maximum Thread Pitch (Decimal Inch)0.020"
Maximum Thread Pitch (mm)0.50mm
Number of Flute5
Shank TypeCylindrical
Thread Tolerance Class6HX
Threading Chamfer TypeC
Thread Form TypeMF
Cutting DirectionRight Hand
Cutting Geometry TypeT33
Cutting Geometry Type TechnicalOil grooves
MaterialHSS-E-PM
CoatingTiAIN+TiN
Product TypeThread Forming Tap
